Hardware Tutorial  Updated

[Gallery] Battery Replacement Alternatives

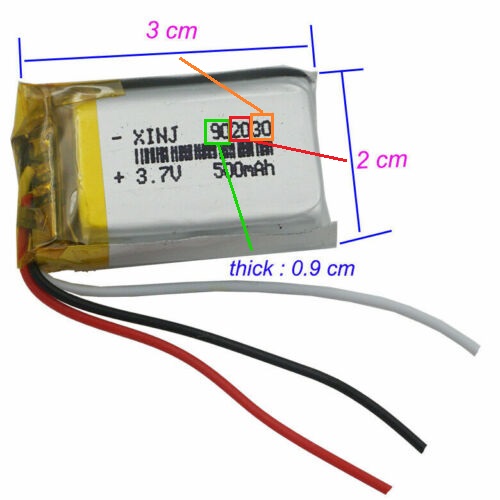

Battery Size Example
Battery Size Example.jpg

Battery Size: 604050
Battery Connector: pcbway.com/project/shareproject/New_3DS_LipoMod.html
3DS solder.jpg 3DS fit.jpg

Battery Size: 603050, 603048, 703048?
Battery Connector: oshpark.com/shared_projects/gaB93JkC
GBA or DS solder.jpg DS Lite fit.jpg

Battery Size: 603050, 603048
Battery Connector: oshpark.com/shared_projects/gaB93JkC
GBA or DS solder.jpg GBA SP fit.jpg

Slim Battery Size: 603450, 633450
Fat Battery Size: 963450, 103450
PSP open.jpg

Battery Connector: Original
PSP terminals.jpg PSP solder.jpg
Battery Connector: Aftermarket
PSP aftermarket terminals.jpg PSP aftermarket solder.jpg

Battery Size: 955178
Wii U PCB.jpg Wii U solder pads.jpg
Wii U solder.jpg

Battery Size: 603450

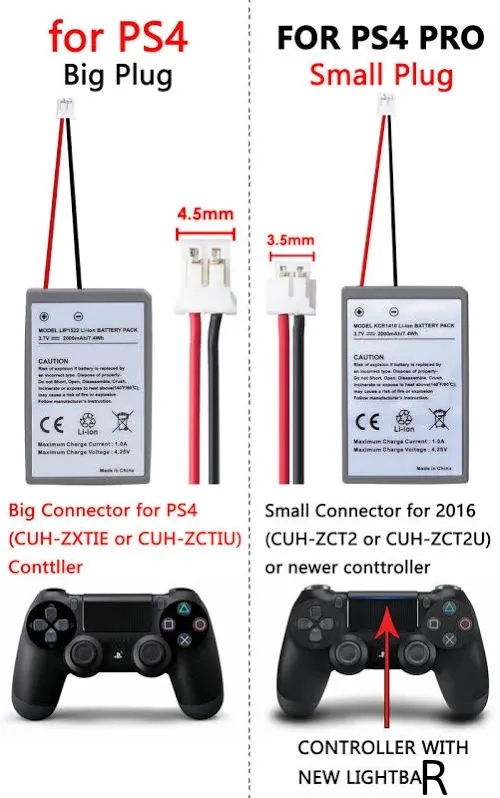

Battery Connector: 3.5mm or 4.5mm

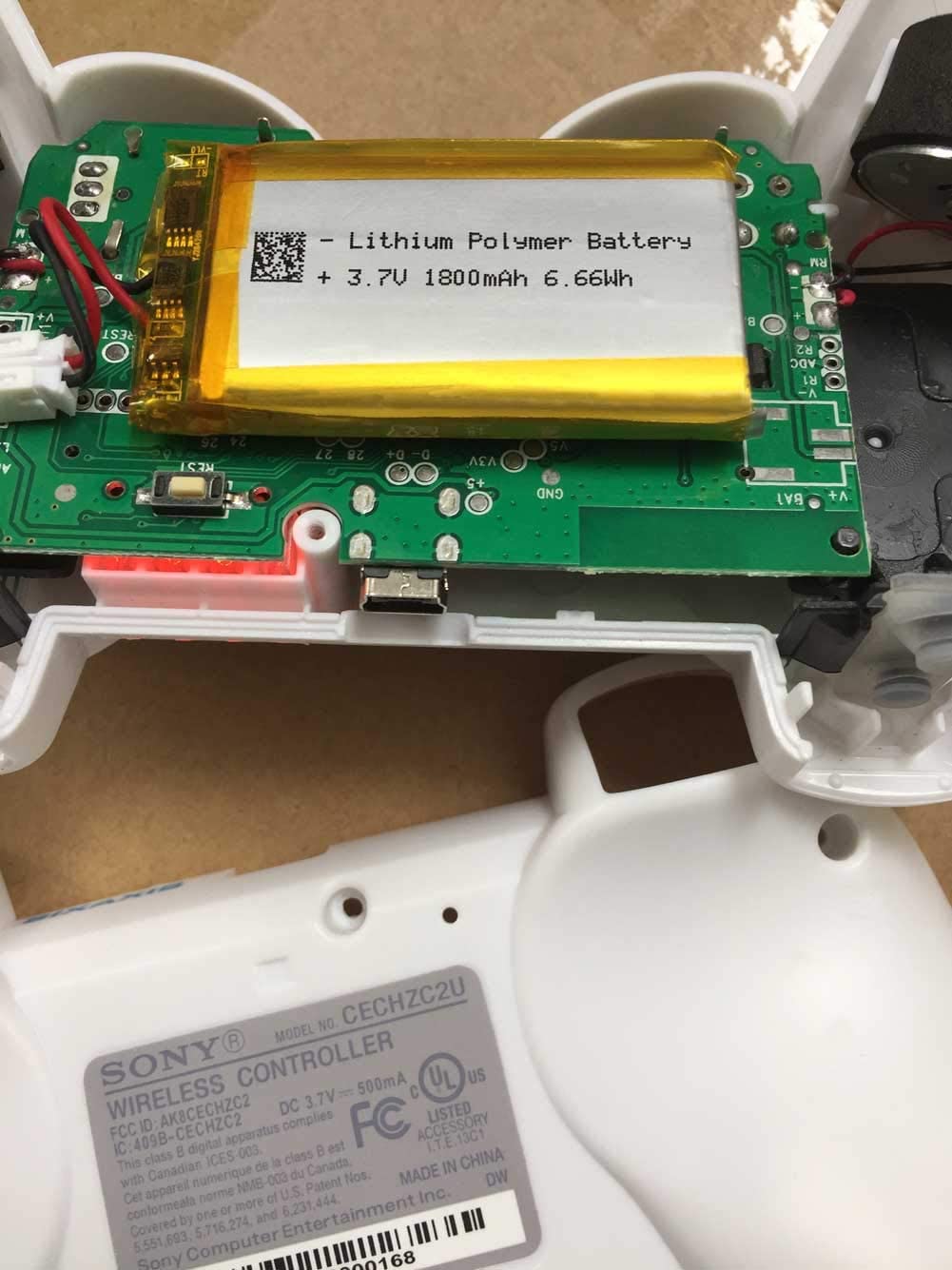

Dualshock 3.jpg Dualshock 4.jpg

Battery Size: SP654580?
Battery Connector: JST ACHR-03V-S
Vita battery disassembly.jpg Vita PCB.jpg Vita Connector.jpg

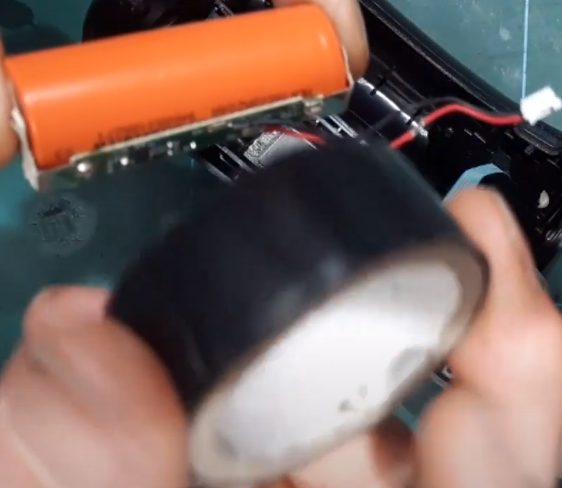

Battery Size: 18500 flat top + electrical tape

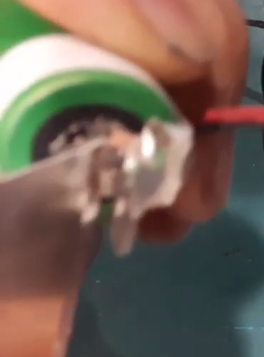

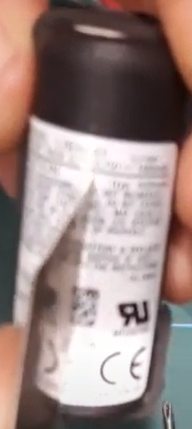

1. Cut open casing, remove
2. Pry off weld spots

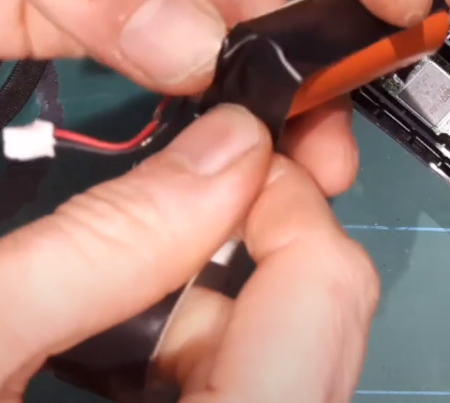

3. Tape (+) and (-) to battery
cut.png uncover.png Motion remove.png Motion PCB.png Motion tape.png

Last edited by zfreeman,
  • Like
Reactions: Y0shII, Plazorn, hssynvey and 1 other person
