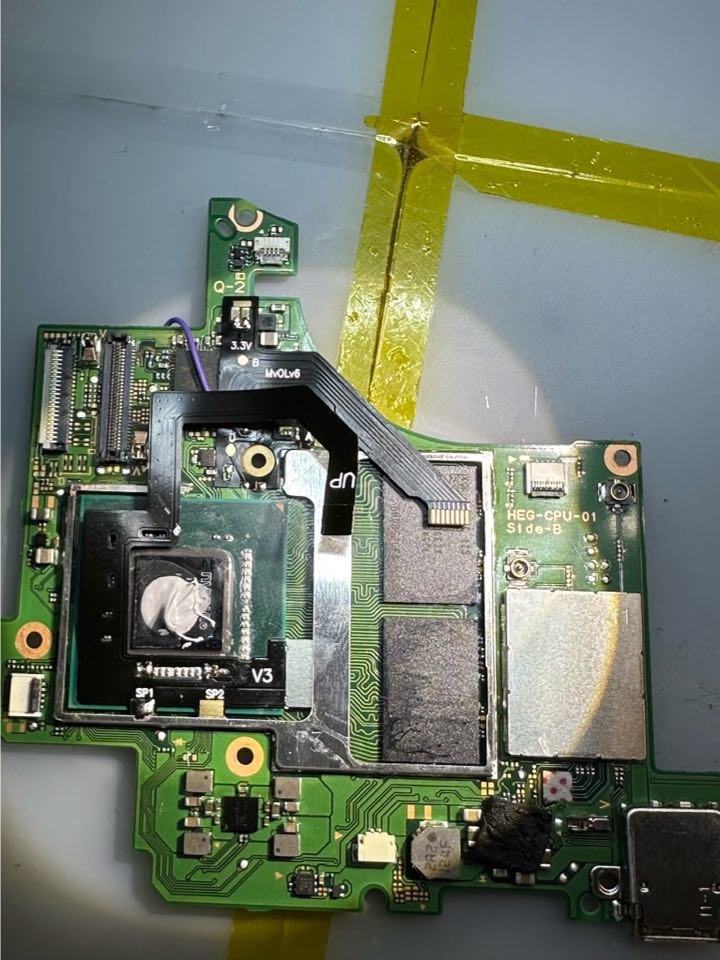

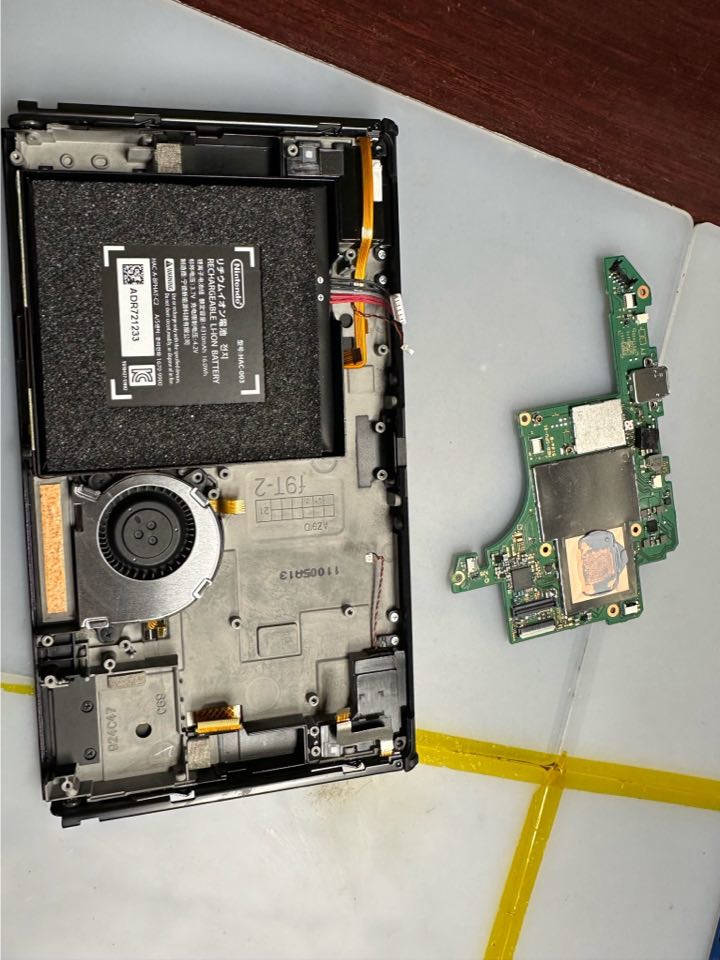

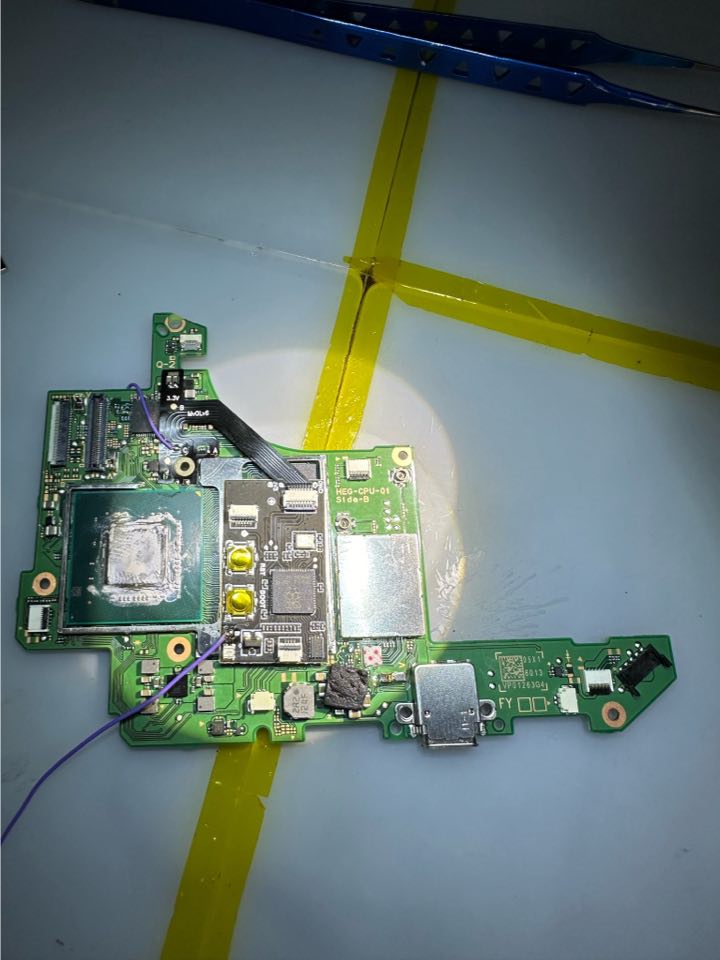

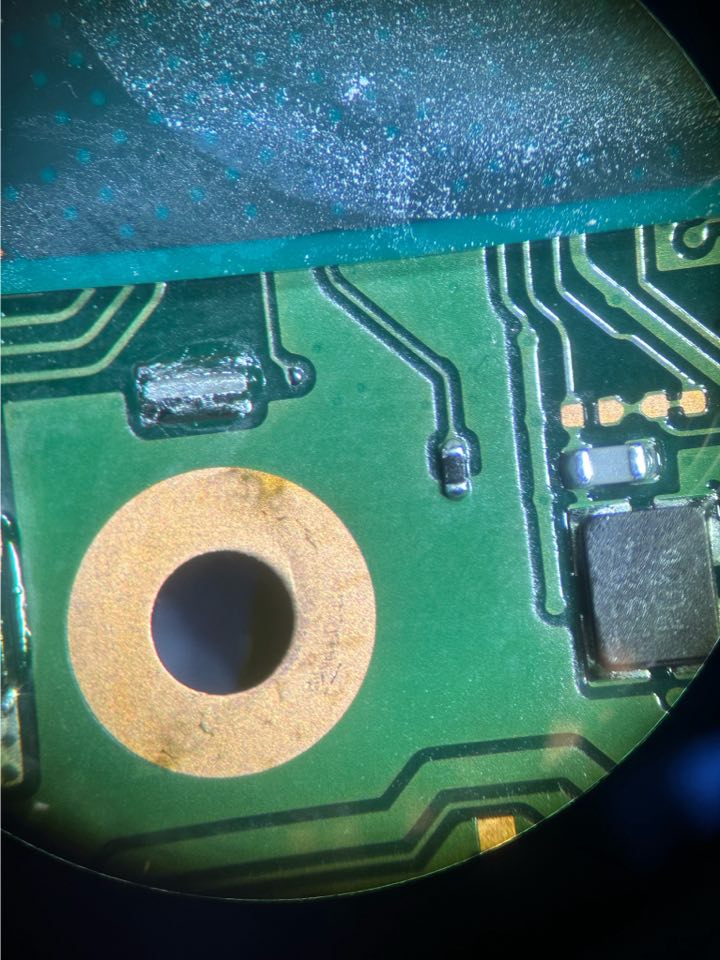

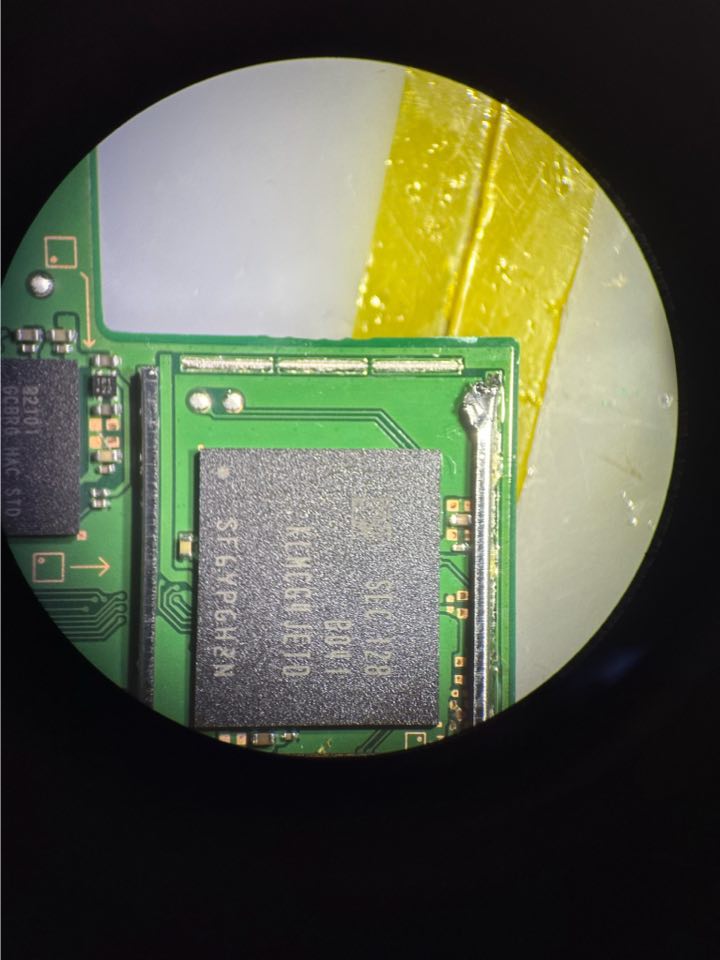

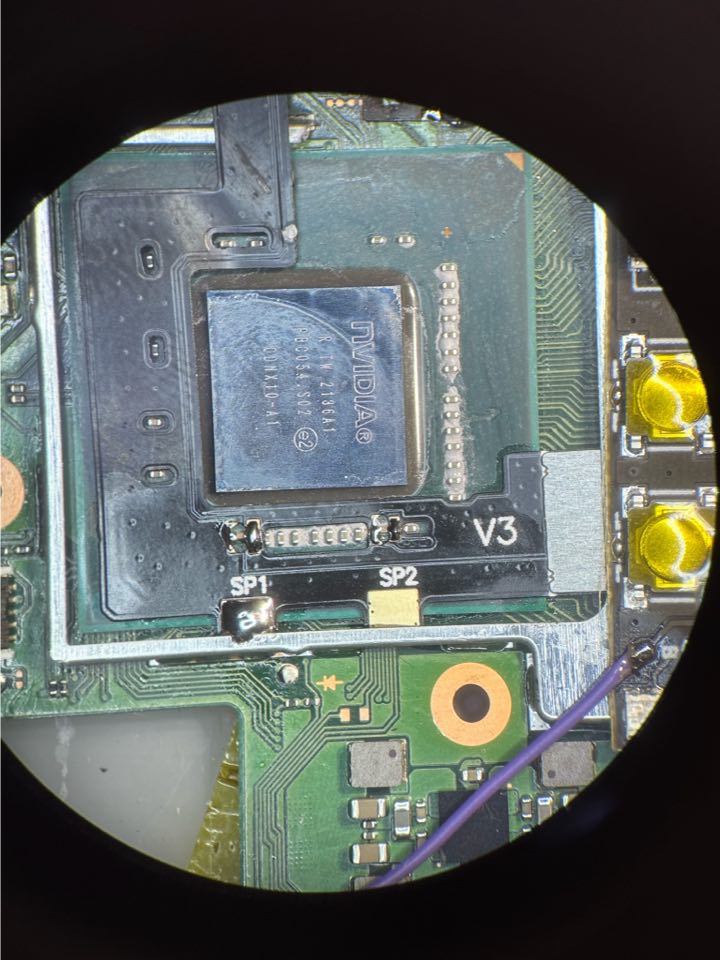

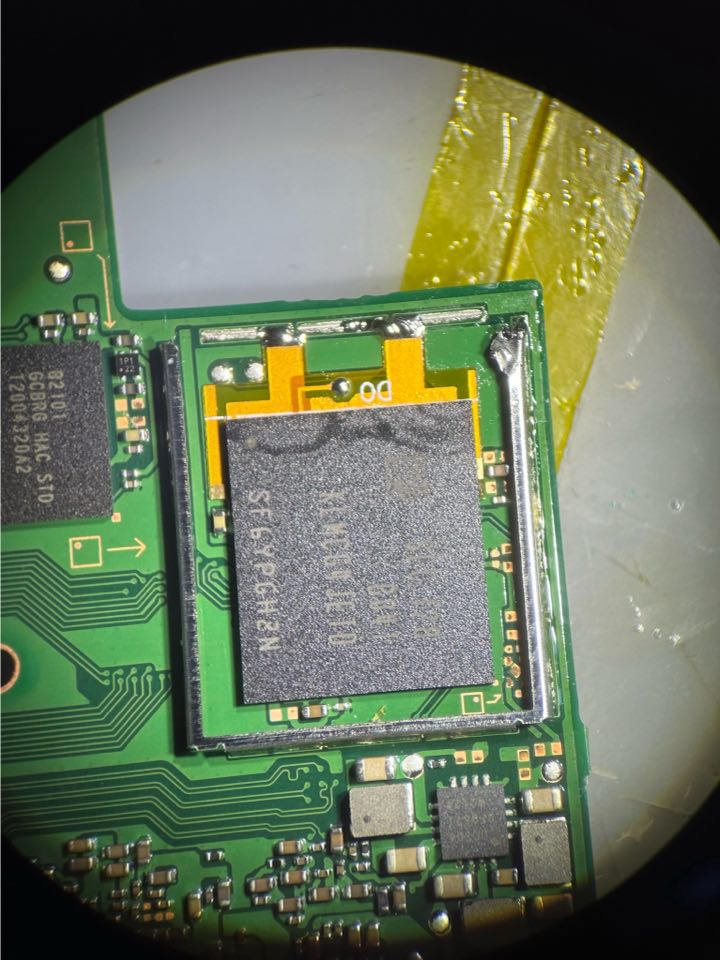

I bought a mod chip and had a guy install it in my oled switch. He messaged me today after doing a function test with a video showing the chip led flash blue and hole, then switch to yellow and hold and flash yellow twice. He says he's not greated with hwfly sd card screen instead the switch boots into ofw.... what could be wrong here??


Attachments

  • received_780893050687157.mp4
    1.4 MB
  • received_283731428040882.jpeg
    235.3 KB · Views: 7
  • received_423354077086734.jpeg
    109.9 KB · Views: 7
  • received_812626857438858.jpeg
    109.3 KB · Views: 6
  • received_461589022892528.jpeg
    71.7 KB · Views: 8
  • received_963740161742439.jpeg
    121.4 KB · Views: 7
  • received_975334547279852.jpeg
    104.1 KB · Views: 7
  • received_2101355106903719.jpeg
    130 KB · Views: 7
  • received_467979282235750.jpeg
    75 KB · Views: 8
  • received_3603761679953849.jpeg
    104.7 KB · Views: 7
  • received_855282046443872.jpeg
    115.4 KB · Views: 6
  • received_450589544222314.jpeg
    129.2 KB · Views: 7
bvang913

bvang913

Well-Known Member
Newcomer
Level 3
Joined
Sep 20, 2023
Messages
57
Trophies
0
Age
34
XP
312
Country
United States
Mike1983 said:
I bought a mod chip and had a guy install it in my oled switch. He messaged me today after doing a function test with a video showing the chip led flash blue and hole, then switch to yellow and hold and flash yellow twice. He says he's not greated with hwfly sd card screen instead the switch boots into ofw.... what could be wrong here??
Click to expand...

One long, one short yellow light is Dat0 is not connected. Tell him to check the connection again. What value does he read in diode mode.

  • Like
Reactions: TinyBilbo
M

Mike1983

New Member
OP
Newbie
Level 1
Joined
May 2, 2024
Messages
2
Trophies
0
Age
40
XP
11
Country
Canada
bvang913 said:
One long, one short yellow light is Dat0 is not connected. Tell him to check the connection again. What value does he read in diode mode.
Click to expand...
He's going to check and send me pics, I'll forward them when I get them
Post automatically merged:

bvang913 said:
One long, one short yellow light is Dat0 is not connected. Tell him to check the connection again. What value does he read in diode mode.
Click to expand...
He said he's getting .8V on Dat0
Post automatically merged:

bvang913 said:
One long, one short yellow light is Dat0 is not connected. Tell him to check the connection again. What value does he read in diode mode.
Click to expand...

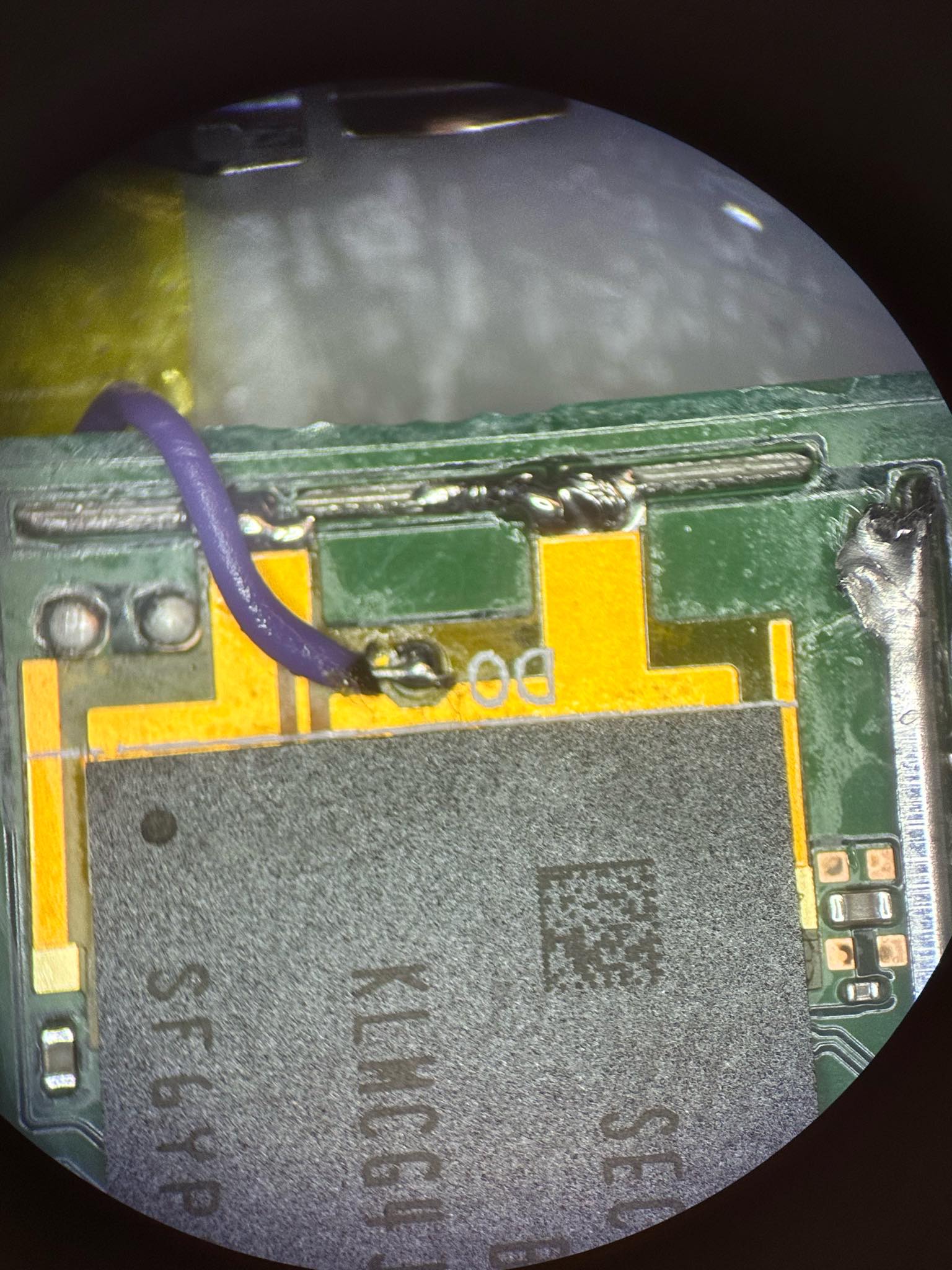

Re checked connections and they're all solid


Attachments

  • received_363374800062585.jpeg
    368.4 KB · Views: 6
Last edited by Mike1983,
Viktorsilva

Viktorsilva

Well-Known Member
Newcomer
Level 3
Joined
May 6, 2020
Messages
86
Trophies
0
Age
44
XP
250
Country
Portugal
Mike1983 said:
He's going to check and send me pics, I'll forward them when I get them
Post automatically merged:


He said he's getting .8V on Dat0
Post automatically merged:


Re checked connections and they're all solid
Click to expand...

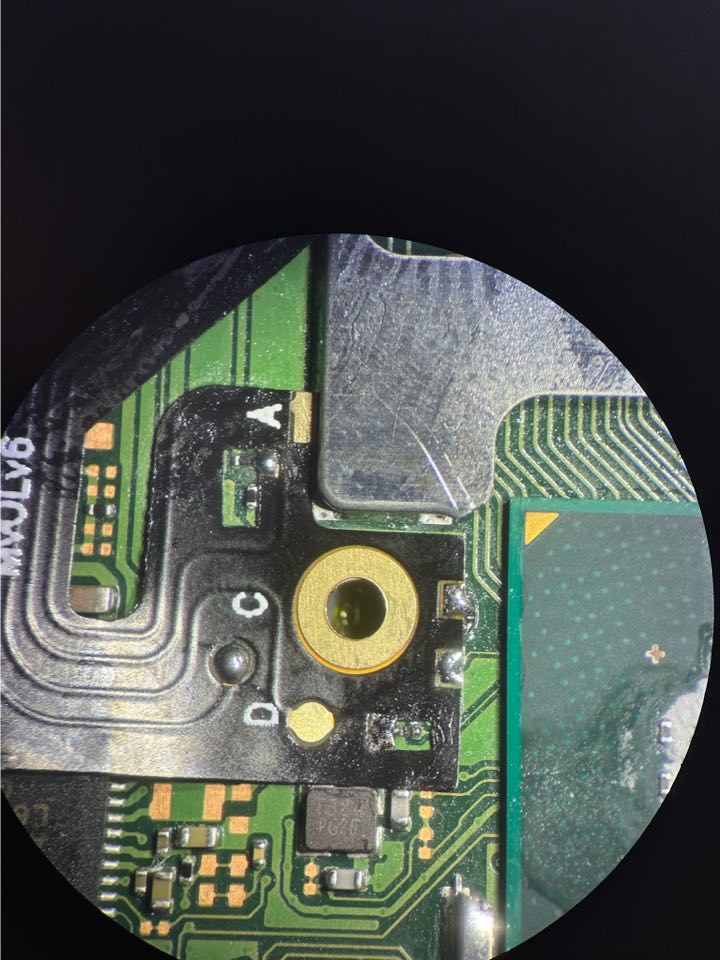

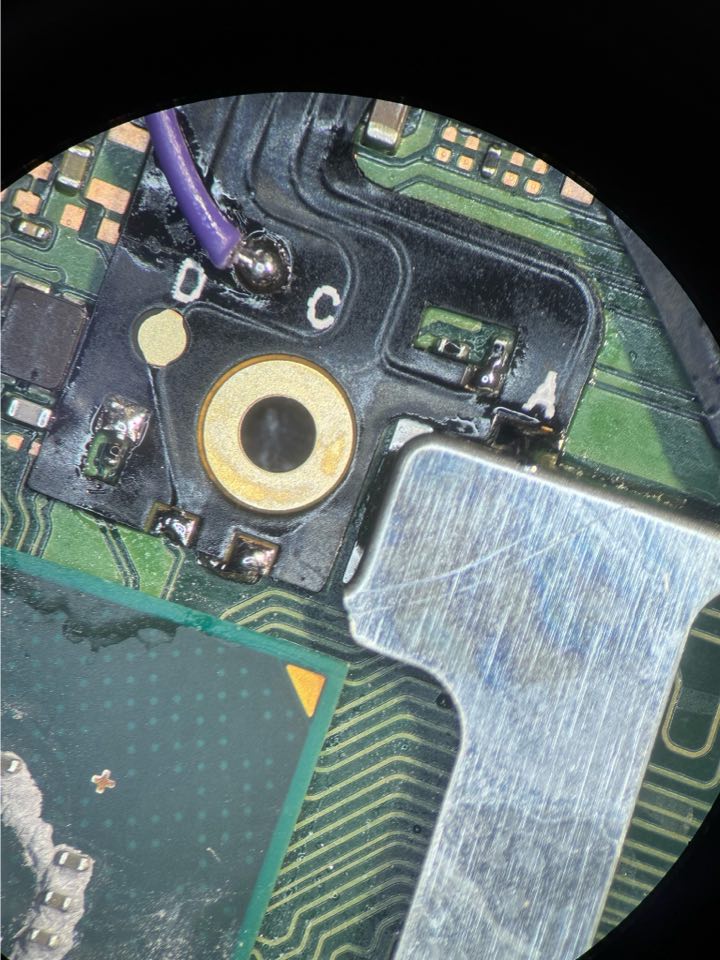

how did he fit the Dat0 adapter ? Did he checked for the reference values between Dat0 and GRD connection ?

pbanj

pbanj

The "friendly" neighborhood sandwich
Member
Level 9
Joined
Dec 29, 2014
Messages
2,759
Trophies
1
Location
in a ziploc
Website
pbanjin.space
XP
1,695
Country
United States

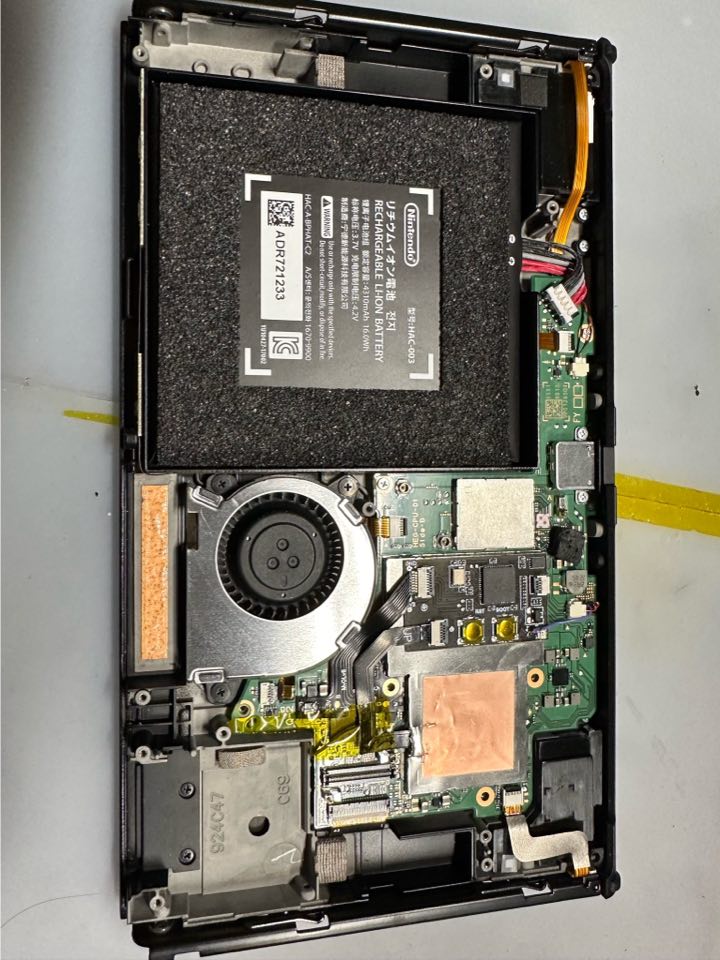

@Mike1983 have him try it without the back on and to make sure the cable for the qsb is in straight. if it boots properly, he needs to secure the cable in place. i had this happen with a system, and it drove me nuts as it wasnt even moving all that much. so i used solder mask to secure it in place
