Hacking Hardware Project Missing capacitor nintendo switch oled

Gazzza

Active Member
OP
Newcomer
Joined
Jul 28, 2017
Messages
33
Trophies
0
Age
26
XP
206
Country
Italy
hey guys, i was doing the mod but i got some troubles with the capacitors ..

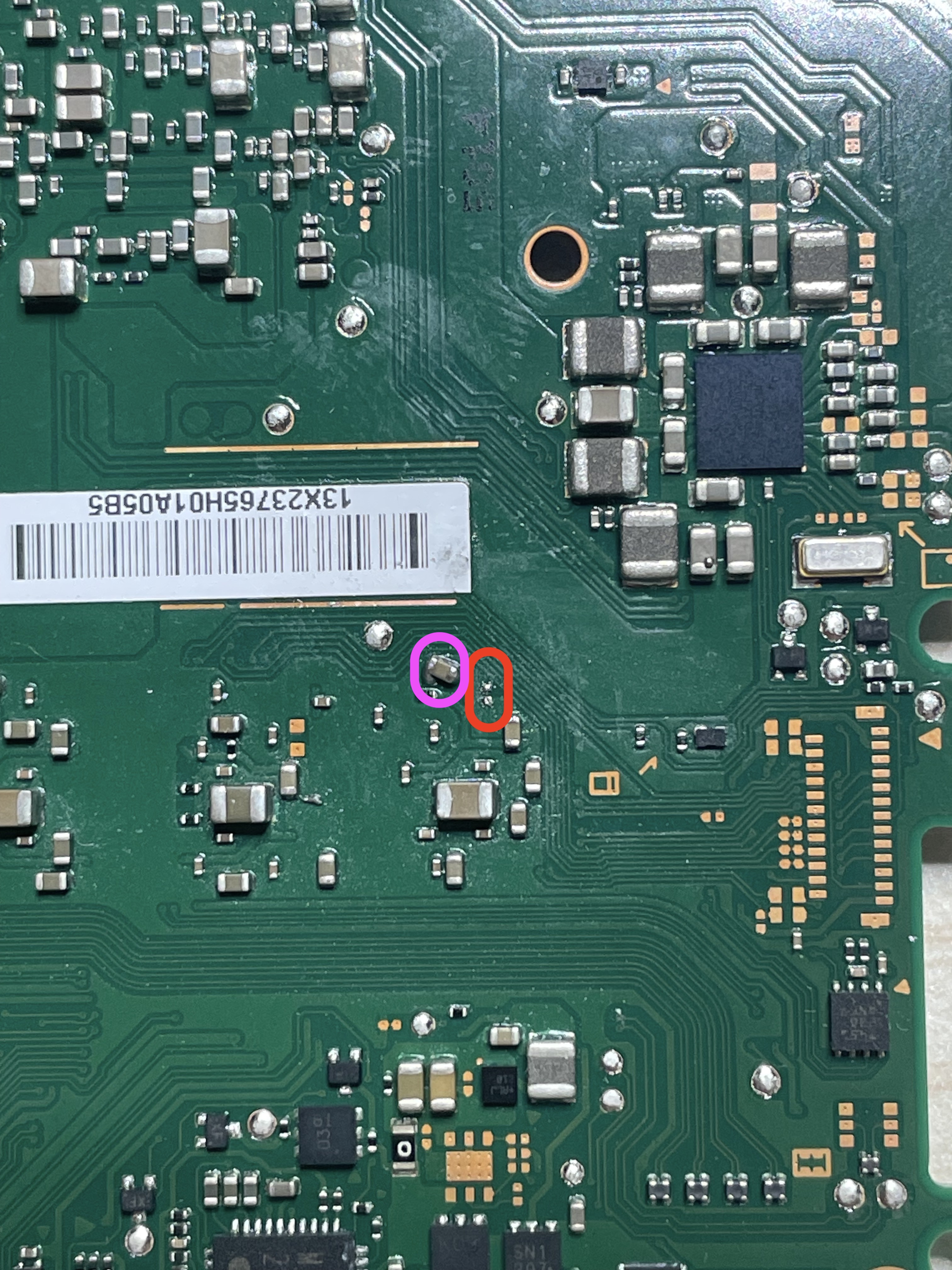

flipping the motherboard a capacitor fell off and was found but i see anther one is missing but i can't find it, so i can't say if it's a capacitor or a resistor but i think it's a capacitor
can you tell me the value of this ? (the red one) [it should be a 0201]
i'm quite desperate because i can't find an answer to my problem ..
if you need more informations i can give it to you

also if you have some suggestions on how i should solder it to the motherboard it would be perfect

thanks for everyone who will answer ..


Attachments

  • IMG_0100.jpeg
    2.1 MB · Views: 71
  • Screenshot 2023-04-24 alle 17.57.41.png
    Screenshot 2023-04-24 alle 17.57.41.png
    2 MB · Views: 75
