Hardware Hacking Switch OLED 256gb NAND upgrade

[ratgoul]

OLED is a 10 layer board. I don't even think you'll manage to remove an eMMC with just hot air.

looking to buy a preheating plate, do you have any suggestions?
Thinking about the UYUE 946C on aliexpress



[Nagaa]

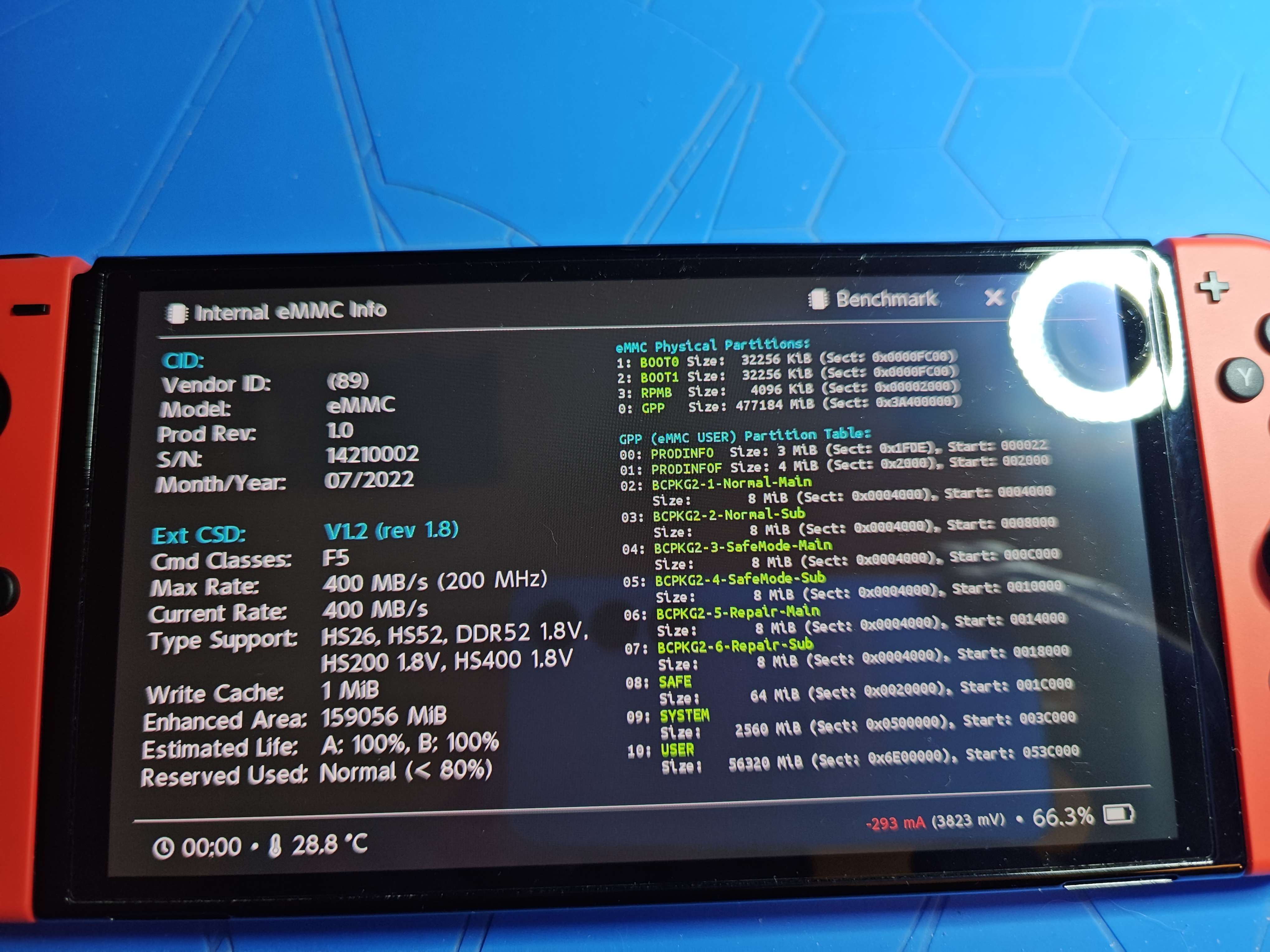

I can confirm SM662PXF-BFST 512Gb is working



[Asia81]

I can confirm SM662PXF-BFST 512Gb is working
View attachment 426555View attachment 426558

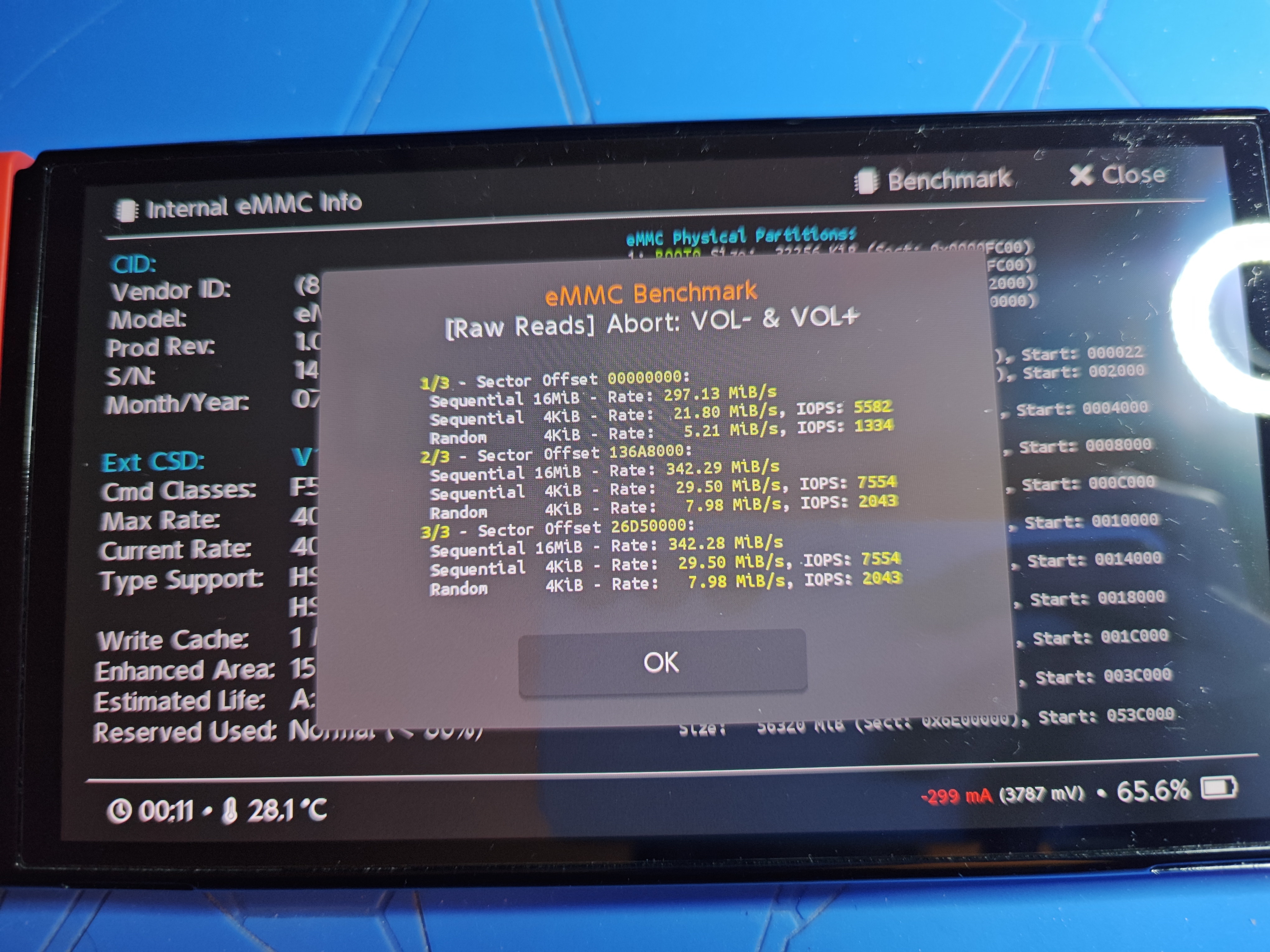

400mbps wtf?
I thought the switch was limited to something like 40 or maximum 50mbps, or that's because the old eMMC, and installing a new one get new speeds ?



[Nagaa]

400mbps wtf?
I thought the switch was limited to something like 40 or maximum 50mbps, or that's because the old eMMC, and installing a new one get new speeds ?

This is average speed for switch emmc, samsung may even be faster
in comparaison with Kingston 256gb :



[Anxiety_timmy]

400mbps wtf?
I thought the switch was limited to something like 40 or maximum 50mbps, or that's because the old eMMC, and installing a new one get new speeds ?

The switch does get 400MB/s on basically every nand unless something isn't connected right. My old 2016 switch had 400MB/s on nand



[zal16]

I can confirm SM662PXF-BFST 512Gb is working
View attachment 426555View attachment 426558

where did you buy this? how much it cost?



[Nagaa]

where did you buy this? how much it cost?

https://www.digikey.fr/fr/products/detail/silicon-motion-inc/SM662PXF-BFST/16360634



[zal16]

I can confirm SM662PXF-BFST 512Gb is working
View attachment 426555View attachment 426558

I see your video on youtube



I'm very impressed

But i just don't understand one thing:
Why did you upgrade the RAM? Is there any benefit to that? Because from what I know, games are written to only take advantage of 4GB, correct?



[hippy dave]

I see your video on youtube



I'm very impressed

But i just don't understand one thing:
Why did you upgrade the RAM? Is there any benefit to that? Because from what I know, games are written to only take advantage of 4GB, correct?

More RAM can be used by Linux and maybe Android



[Anxiety_timmy]

More RAM can be used by Linux and maybe Android

Plus some games can actually use the extra space although they're few and far between



[Nagaa]

I see your video on youtube



I'm very impressed

But i just don't understand one thing:
Why did you upgrade the RAM? Is there any benefit to that? Because from what I know, games are written to only take advantage of 4GB, correct?

Mainly for overclocking performance, if you compare it with the previous AB-MGCL that was on this switch, there is a significant difference ~2500Mhz vs ~3200Mhz + tight timings on L4T
On HOS it depend on games, but most don't use it



[zal16]

Mainly for overclocking performance, if you compare it with the previous AB-MGCL that was on this switch, there is a significant difference ~2500Mhz vs ~3200Mhz + tight timings on L4T
On HOS it depend on games, but most don't use it

The extra MHz is interesting (about 30% more bandwidth). Mine OLED reaches 2500 MHz too.



[0DanDan0]

Mainly for overclocking performance, if you compare it with the previous AB-MGCL that was on this switch, there is a significant difference ~2500Mhz vs ~3200Mhz + tight timings on L4T
On HOS it depend on games, but most don't use it

Nagaa what ram did you use can you put a link beacause i cant find the one you used in your video

Post automatically merged: Apr 10, 2024

Could this possibly be the ram https://www.aliexpress.com/item/3256805544448410.html



[Nagaa]

Nagaa what ram did you use can you put a link beacause i cant find the one you used in your video

Post automatically merged: Apr 10, 2024

Could this possibly be the ram https://www.aliexpress.com/item/3256805544448410.html

Yes this one NEI 4GB



[Woody211]

Decided to join in and install a SanDisk SDINADF4 128G. Works great and glitches fast unlike the Toshiba chip it replaced.
Thankyou to all that have contributed guides and info on the various threads about emmc upgrades.



[0DanDan0]

Mainly for overclocking performance, if you compare it with the previous AB-MGCL that was on this switch, there is a significant difference ~2500Mhz vs ~3200Mhz + tight timings on L4T
On HOS it depend on games, but most don't use it

First what were your timings second how did you edit the value amounts in sysclk-oc third how did you make some games use 8gb



[0DanDan0]

Mainly for overclocking performance, if you compare it with the previous AB-MGCL that was on this switch, there is a significant difference ~2500Mhz vs ~3200Mhz + tight timings on L4T
On HOS it depend on games, but most don't use it

Could you link your kip file for the 8gb ram oc



[Nagaa]

Could you link your kip file for the 8gb ram oc

https://discord.gg/h3secPkG53
