The console freezes after 30 minutes of playing, sometimes even faster when the game is loaded from the disc. Does anyone know what this error is? Thanks
Code:
Opening Device on USB Serial Port (COM5)...OK
[*] Listening for Playstation 5.
[+] Detected a Playstation 5 on USB Serial Port (COM5)
Error 0
808B00FF: Known Unknown 823 (Power) - Report Findings
Error 1
B0082108: Known Unknown 866 (Chip or Data - Report Findings
Error 2
808300F0: Secure Loader Error
Error 3
C0020303: APU Not Responding - Trying Init or Reboot - 3
Error 4
Error 5
C0020303: APU Not Responding - Trying Init or Reboot - 3
80000001: Overheat or Init APU Error
Error 6
C0020303: APU Not Responding - Trying Init or Reboot - 3
Error 7
C0020303: APU Not Responding - Trying Init or Reboot - 3
Error 8
C0020303: APU Not Responding - Trying Init or Reboot - 3
Error 9
C0020303: APU Not Responding - Trying Init or Reboot - 3
Error 10
C0020303: APU Not Responding - Trying Init or Reboot - 3
The console freezes after 30 minutes of playing, sometimes even faster when the game is loaded from the disc. Does anyone know what this error is? Thanks
Code:
Opening Device on USB Serial Port (COM5)...OK
[*] Listening for Playstation 5.
[+] Detected a Playstation 5 on USB Serial Port (COM5)
Error 0
808B00FF: Known Unknown 823 (Power) - Report Findings
Error 1
B0082108: Known Unknown 866 (Chip or Data - Report Findings
Error 2
808300F0: Secure Loader Error
Error 3
C0020303: APU Not Responding - Trying Init or Reboot - 3
Error 4
Error 5
C0020303: APU Not Responding - Trying Init or Reboot - 3
80000001: Overheat or Init APU Error
Error 6
C0020303: APU Not Responding - Trying Init or Reboot - 3
Error 7
C0020303: APU Not Responding - Trying Init or Reboot - 3
Error 8
C0020303: APU Not Responding - Trying Init or Reboot - 3
Error 9
C0020303: APU Not Responding - Trying Init or Reboot - 3
Error 10
C0020303: APU Not Responding - Trying Init or Reboot - 3

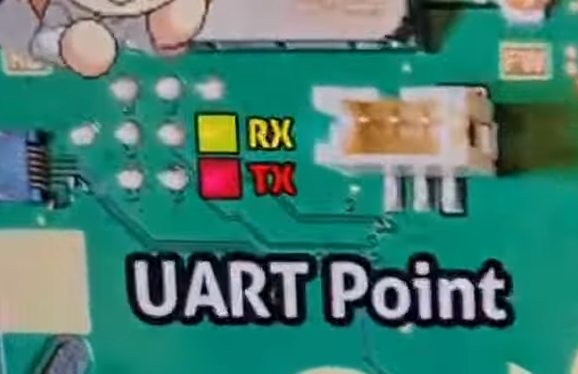

I check my PS5 UART and this is the error code i get. Do you think reballing APU might solve the problem?
[+] Detected a Playstation 5 on Silicon Labs CP210x USB to UART Bridge (COM3)
Error 0
C0020303: APU Not Responding - Trying Init or Reboot - 3
Error 1
Error 2
C0020303: APU Not Responding - Trying Init or Reboot - 3
C0020303: APU Not Responding - Trying Init or Reboot - 3
Error 3
Error 4
80000009: Unexpected Power Cut or Shutdown Failure
I check my PS5 UART and this is the error code i get. Do you think reballing APU might solve the problem?
[+] Detected a Playstation 5 on Silicon Labs CP210x USB to UART Bridge (COM3)
Error 0
C0020303: APU Not Responding - Trying Init or Reboot - 3
Error 1
Error 2
C0020303: APU Not Responding - Trying Init or Reboot - 3
C0020303: APU Not Responding - Trying Init or Reboot - 3
Error 3
Error 4
80000009: Unexpected Power Cut or Shutdown Failure
I got the same APU error when i waited PS5 to shut down properly. I tested a couple of times. My PS5 is stuck at PS logo and i tried all the possible fixes in Safe Mode.
I had this one too. I believe (not sure) GDDR6 Data Line Issue (Replace) is because it can't reach GDDR6 because of APU.
Opening Device on Silicon Labs CP210x USB to UART Bridge (COM3)...OK
[*] Listening for Playstation 5.
[+] Detected a Playstation 5 on Silicon Labs CP210x USB to UART Bridge (COM3)
Error 0
C0020303: APU Not Responding - Trying Init or Reboot - 3
Error 1
Error 2
C0020303: APU Not Responding - Trying Init or Reboot - 3
80000009: Unexpected Power Cut or Shutdown Failure
Error 3
Error 4
80C00140: APU Freeze (No Response) - GDDR6 Data Line Issue (Replace)
80C00140: APU Freeze (No Response) - GDDR6 Data Line Issue (Replace)
Error 5
C0020303: APU Not Responding - Trying Init or Reboot - 3
Error 6
Error 7
C0020303: APU Not Responding - Trying Init or Reboot - 3
80000009: Unexpected Power Cut or Shutdown Failure
Error 8
C0020303: APU Not Responding - Trying Init or Reboot - 3
Error 9
Error 10
C0020303: APU Not Responding - Trying Init or Reboot - 3
C0020303: APU Not Responding - Trying Init or Reboot - 3
I got the same APU error when i waited PS5 to shut down properly. I tested a couple of times. My PS5 is stuck at PS logo and i tried all the possible fixes in Safe Mode.
I had this one too. I believe (not sure) GDDR6 Data Line Issue (Replace) is because it can't reach GDDR6 because of APU.
Opening Device on Silicon Labs CP210x USB to UART Bridge (COM3)...OK
[*] Listening for Playstation 5.
[+] Detected a Playstation 5 on Silicon Labs CP210x USB to UART Bridge (COM3)
Error 0
C0020303: APU Not Responding - Trying Init or Reboot - 3
Error 1
Error 2
C0020303: APU Not Responding - Trying Init or Reboot - 3
80000009: Unexpected Power Cut or Shutdown Failure
Error 3
Error 4
80C00140: APU Freeze (No Response) - GDDR6 Data Line Issue (Replace)
80C00140: APU Freeze (No Response) - GDDR6 Data Line Issue (Replace)
Error 5
C0020303: APU Not Responding - Trying Init or Reboot - 3
Error 6
Error 7
C0020303: APU Not Responding - Trying Init or Reboot - 3
80000009: Unexpected Power Cut or Shutdown Failure
Error 8
C0020303: APU Not Responding - Trying Init or Reboot - 3
Error 9
Error 10
C0020303: APU Not Responding - Trying Init or Reboot - 3
C0020303: APU Not Responding - Trying Init or Reboot - 3
From my knowledge the GDDR6 rams are the eight ram moduls around the APU. And this fault 'Data Line Issue' may refere to a problem with the APU to communicate with the one of the rams. But I'm not quite sure how it differs to a ram sided issue, where the ram could be replaced.
I replaced the PSU, and I've got the same issue:
[*] Operation: Read UART Codes.
808B00FF: Known Unknown 823 (Power) - Report Findings
808300F0: Secure Loader Error
FFFFFFFF: No Errors
FFFFFFFF: No Errors
FFFFFFFF: No Errors
FFFFFFFF: No Errors
FFFFFFFF: No Errors
FFFFFFFF: No Errors
FFFFFFFF: No Errors
FFFFFFFF: No Errors
FFFFFFFF: No Errors
From my knowledge the GDDR6 rams are the eight ram moduls around the APU. And this fault 'Data Line Issue' may refere to a problem with the APU to communicate with the one of the rams. But I'm not quite sure how it differs to a ram sided issue, where the ram could be replaced.
Do you have SkHynix memory on board, or it is Samsung/Micron ? I have 2 CFI-12xx with this error and both of them have SkHynix memory chips. I tried to get temperature while I'm stuck in safe mode without any response and reaction on gamepad, and they got hot up to 90C within 30 seconds. I think it is not normal at all.
I replaced the PSU, and I've got the same issue:
[*] Operation: Read UART Codes.
808B00FF: Known Unknown 823 (Power) - Report Findings
808300F0: Secure Loader Error
FFFFFFFF: No Errors
FFFFFFFF: No Errors
FFFFFFFF: No Errors
FFFFFFFF: No Errors
FFFFFFFF: No Errors
FFFFFFFF: No Errors
FFFFFFFF: No Errors
FFFFFFFF: No Errors
FFFFFFFF: No Errors
I bought an NVMe SSD drive, moved all games to the SSD drive, and played for a second day without any crashes from DVD discs or the internal disk. I think error 808B00FF: Known Unknown 823 (Power) - Report Findings and 808300F0: Secure Loader Error are related to the on-board SSD chips or controller.
My PS5 Only runs for about 10-20 seconds then I get a black screen. Recovery mode does not have the same issue.Things I have done thus far.*Updated Firmware (recovery mode)*Rebuild database and clear cache (recovery mode)*Reset the System (recovery mode).It would be awesome to get some help regarding this.
FYIS5 stays on when this happens and when pushing down the power button I get 3 beeps then I need to force shutdown the console by holding power button or I need to pull the plug. The sound comes and goes while console is on.
INTERESTING PART: When I hold down to power button to turn the console off I get this error "80C00140: APU Freeze (No Response) - GDDR6 Data Line Issue (Replace)"
When I turn it off by pulling out the cord I get this "B0088108: Known Unknown 810 (Chip or Data) - Report Findings"
[*] Operation: Read UART Codes.
C0020303: APU Not Responding - Trying Init or Reboot - 3
C0020303: APU Not Responding - Trying Init or Reboot - 3
C0020303: APU Not Responding - Trying Init or Reboot - 3
B0088108: Known Unknown 810 (Chip or Data) - Report Findings
80000009: Unexpected Power Cut or Shutdown Failure
80C00140: APU Freeze (No Response) - GDDR6 Data Line Issue (Replace)
FFFFFFFF: No Errors
FFFFFFFF: No Errors
FFFFFFFF: No Errors
FFFFFFFF: No Errors
FFFFFFFF: No Errors
A long pulsing blue light is mostly APU related.
Till now I encountered:
A) liquid metall found its way through the sealing on the APU and is shorting one or more little components surounding the die.
B) broken solder joint/connections between APU and mainboard
