PlayStation 1 SCPH-1002 (pictures about 400KB)

With all the interesting new exploits I decided to get a few more PlayStation 1 models. Having no console with all connectors in the collection is kind of lame anyway.

So I ordered an SCPH-1002 that was described as working but in less than ideal condition. Everything has become so expensive in 2020 and I don't think is about to change any time soon (if it will change at all). Luckily the most games, consoles and accessories I want to have are already here. I acquired my collection for the most part dirt cheap on flea markets (which do not exist anymore). Now I wish I had bought much more. Double, triple and quadruple if possible. Things used to be soooo cheap on flea markets.


Like expected when ordering a console from a professional reseller, I got a working device without a modchip. Interestingly the previous owner seemed to use the swap trick for booting backups. That is a thing a reseller will most likely not look for. I don't think that spring blocking the "lid closed" sensor button should be in that place. Pushing the lid a small bit down makes the drive start.

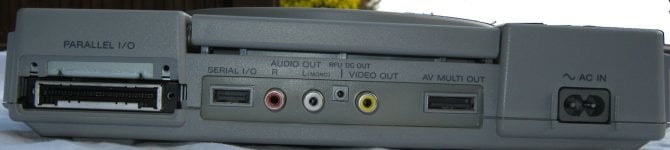

PlayStation_a.JPG PlayStation_c.JPG
Like expected from an early model, the laser/drive is pretty worn down (and I expect a comment on this from a certain well-known GBAtemp member). Starting Crash Bandicoot 2 (a little scratched) took a few tries. Then Tonyhax exploit told me what I wanted to know: BIOS version 2.2
To do some further testing I booted up Dune 2000 from CD-R because the game has pretty good full motion video. Stuttering. ARGH! The laser is really weak. Reminds me: Test legit disc if the videos work from there.
=============

The console came with a strange memory card. At first I thought it was one with more memory/pages. But there is no switch on this thing. When inserting the MC, it shows 10 on its small segment display for a short time. Anybody got an idea what this is?
MC1.JPG MC3.JPG

Edit:
Thanks @Alexander1970 for giving me information about the "Mega Memory Card" in the comments.

Edit 2:
Dune 2000 cutscenes working from original CD. The drive does not sound too good. Some kind of quiet rattling. When standing the PlayStation vertically the strange sound goes away and the reading is better, even from CD-R. Mechanical problems?

Edit 3:
Seems I made a fool of myself for not recognizing that memory card right away. Having a combined Memory/Rumble Pak by Datel for N64 in the collection – with the same segment display and the same reflecting dark cover above it – I should have known. Getting older sucks. Getting forgetful in the mid-thirties sucks even more.


Thanks for reading!
  • Like
Reactions: 8 people

Comments

Zitat von Datel Game Products




Bedienungsanleitung für PlayStation
Mega Memory Card

Playstation Mega Memory Card - 360 Speicherheinheiten

Einleitung

Die Mega Memory Card funktioniert wie eine Standard-Memory Card, kann jedoch bis zu 24 Mai mehr Informationen speichern.
Die Mega Memory Card verfügt über 24 Seiten. Jede dieser verfügbaren Seiten hat 15 Speichereinheiten (Slots). Das Wechseln
von Seite zu Seite tst sehr einfach, eine LED-Anzeige zeigt nicht nur den Status eines aktuellen Vorgangs an, sondern auch auf
welcher Seite Sie steh befinden.


Verwendung der Mega MemoryCard
1. Stecken Sie die Mega Memory Card in einen Speicherkartensteckplatz auf der Playstation. Stecken Sie außerdem
ein Gamepad in dieselbe Seite der Playstation.
2. Legen Sie eine Spiele-CD in die PlayStation ein und schalten Sie die Konsole ein.
3. Nach dem PlayStation-Logo und dem Copyright wird die aktuelle Seitenzahl der Mega Memory Card angezeigt.

Seiten wechseln
1. Stellen Sie sicher, dass ein Gamepad auf derselben Seite der Playstation wie die Mega Memory Card
angeschlossen ist.
2. Drücken und halten Sie gleichzeitig die Knöpfe START, L1 und R1 des Gamepads Die aktuelle Seitenzahl wird
angezeigt. Lassen Sie nun die Knöpfe L1 und R1 los, halten Sie jedoch den START-Knopf während der folgenden
Vorgänge weiterhin gedrückt.
3. Um die Seitenzahl zu erhöhen, drücken Sie den Knopf R1. Halten Sie den Knopf R1 gedrückt um, schneller
vorwärts zu blättern.
4. Um die Seitenzahl zu reduzieren, drücken Sie den Knopf L1 Halten Sie den Knopf L1 gedrückt, um schneller
rückwärts zu blättern.
5. Wenn Sie die gewünschte Seitenzahl erreicht haben, lassen Sie den START-Knopf los.
6. Jetzt wird die Mega Memory Card zu der gewünschten Seite wechseln. Dieser Vorgang sollte höchsten 20-30
Sekunden dauern, während denen eine horizontale Leiste erscheint, die Anzeigt, dass die Mega Memory Card
arbeitet. Wenn der Buchstabe "E" angezeigt wird, lesen Sie bitte unter dem Punkt "Seitenblättern nicht möglich"
weiter.
7. Schalten Sie die Playstation NICHT aus und entfernen Sie die Mega Memory Card NICHT, während die Mega
Memory Card arbeitet.
8. Die neue Seitenzahl wird kurz nach der neuen Speicherungen und Ladevorgängen für diese Seite angezeigt

ACHTUNG: Wechseln Sie nicht während eines Spiels die Seiten, hierbei können gespeicherte Daten zerstört werden oder
verloren gehen.

Mega Memory Card löschen
Die folgenden Anweisungen dienen dazu, eine einzelne Seite der Mega Memory Card zu löschen.
1. Erhöhen Sie die Seitenanzahl, bis die Bezeichnung "FP" angezeigt wird
2. Lassen Sie alle Knöpfe des Gamepads los.
3. Die Bezeichnung "FP" wird für ca. 5 Sekunden aufblinken. Wenn während dieser Zeit kein Knopf gedrückt wird, wird mit
dem Formatieren begonnen. Wenn die Formatierung abgeschlossen ist (nach ca. 1 Sekunde), ist die formatierte Seite
standardmäßig die aktuelle Seite.
4. Um das Formatieren abzubrechen und zur aktuellen Seite zurückzukehren, drücken Sie auf einen beliebten Knopf auf
dem Gamepad, während die Bezeichnung "FP" blinkt

Die folgenden Anweisungen dienen dazu, die gesamte Mega Memory Card zu löschen

ACHTUNG: Durch diesen Vorgang werden ALLE gespeicherten Daten gelöscht.

1 Erhöben Sie die Seitenzahl, bis die Bezeichnung "FF" angezeigt wird.
2. Lassen Sie alle Knöpfe des Gamepads los.
3. Die Bezeichnung "FF" wird für ca. 5 Sekunden aufblinken. Wenn während dieser Zeit kein Knopf gedrückt wird, wird mit
dem Formatieren begonnen. Wenn die Formatierung abgeschlossen ist (nach ca. 1 Sekunde), ist die aktuelle
Seite standardmäßig Seite 1.
4. Um das Formatieren abzubrechen und zur aktuellen Seite zurückzukehren, drücken Sie auf einen beliebigen Knopf auf
dem Gamepad. während die Bezeichnung "FF" blinkt.

Seitenblättern nicht möglich
Wenn während dem Blättern zu einer anderen Seite der Buchstabe "E" angezeigt wird, kann der Seitenwechsel nicht komplett
abgeschlossen werden. Dies kann vorkommen, wenn die Mega Memory Card voll ist, weil fast alle der 24 Seiten belegt sind, oder
weil bestimmte Speispeichereinheiten nicht richtig komprimiert werden konnten. Einige Speichereinheiten müssen gelöscht
werden bevor Sie erneut versuchen zu blättern, sonst werden Sie auf dieser Seite nicht weiterkommen. Versuchen Sie zunächst
eine Speichereinheit zu entfernen, um wieder blättern zu können. Falls dies nicht ausreicht, entfernen Sie weitere
Speichereinheit.

Hinweis
Da die Mega Memory Card über eine sehr große Speicherkapazität verfügt, kann es sehr schwierig sein, die Speicherplätze Ihrer
Lieblingsspiele zu finden. Wir empfehlen Ihnen daher, eine Liste mit den Spielen zu erstellen, die auf jeder Seite gespeichert
wurden.

Warum muss ich einige Speichereinheiten entfernen?
Die Mega Memory Card verwendet leistungsstarke Komprimierungstechniken, um einen verfügbaren Datenspeicherbereich von
360 Speichereinheiten zu erreichen. Die meisten gespeicherten Spiele fassen sich effizient komprimieren und das Speichern von
360 Speichereinheiten dieses Datentyps verursacht keine Probleme. In einigen wenigen Fällen ist der Datentyp des gespeicherten
Spiels jedoch ein Datentyp, der sich nicht effizient komprim ieren lässt In solchen Fällen kann die Speicherung viel mehr
Speicherplatz benötigen als vorhanden, und obwohl die LED -Anzeige nicht anzeigt, dass die Kassette voll ist, ist tatsächlich kein
Speicherplatz mehr vorhanden. Daher ist es notwendig, eine oder mehrere Speichereinheiten mit gespeicherten Spielen zu
löschen.

  • Like
Reactions: 3 people
Thank you, Alex, you're the best!
I don't got any packaging and had no idea this was a Datel product. Cool! Page switching with the controller works. For whatever reason the Mega Memory Card (I will use MMC from now on) was set to page 10.

Didn't expect to get such a curiosity. I won't trust a compressing memory card though.
===================


I will provide a short English summery of the above German manual (not a complete translation):

On power on or inserting the MMC shows the currently selected page 1…24.
  • Hold (L1)+(R1)+(Start) on the controller connected on the same side as the MMC
  • Release (L1)+(R1) but still hold (Start).
  • Holding (Start) press (L1) to decrease page number and (R1) to increase page number. Hold the buttons for faster selection.
  • Release all buttons once the desired page number is reached. The MMC will switch to the selected page which takes a few seconds.
Deleting:
  • Above page 24 is FP – (Format Page i guess). Select this to format currently selected page. FP will flash for 5 seconds. If you press nothing, it will format. Press anything to abort.
  • Above FP is FF. Formats everything. Same as above. FF will flash for 5 seconds. If you press nothing, everything will be deleted.
Some notes:
  • MMC uses compression. If saves cannot be compressed efficiently you can't use all pages. Switching pages might not work until you delete some data.
  • It will show "E" if it can't switch pages.
  • Don't remove MMC or turn off the PlayStation while the Memory Card is working (saving or page switching). This might lead to data loss.
==============
The forum link to psxtools.de is hilarious.
Can a video about this be found?

I would find it interesting to see this.
Does it boot a software from the MC, or how does the MC recognize what is pressed on the controller.
Why does everything have to be in video form nowadays? The manual is easy to understand. There is not much to see.
As far as I know controller and MC are on the same bus so the MC can indeed monitor controller input somehow.

  • Like
Reactions: 2 people
Videos are better for the average joe who doesn't know what the root of the sd card is. but im sure that 99.999% of people can at least follow along

  • Like
Reactions: 3 people
@wiiuepiccpu It doesn't even have an SD and no connection to a PC. It's (sadly) not one of the modern Memcard Pro.

Videos can be helpful as instructions. I had to replace air filters for the engine and the air condition in my car. How to do this? Where are these filters? A short video showed everything needed in seconds – better than any text description. Look at screen, look at car, open the same screws as shown in the video. Sometimes videos are clearly in advantage… and sometimes the text is.
The above description is easy to understand. Which buttons to press in what order. Any video would be harder to follow – and the person on the video would do little more than reading the instructions aloud.
===========

I've now used the FF format all option to make sure there are not a bunch of old files without checking each of the 24 pages. After that I filled two pages with different data. Seems to work for now. Selecting pages takes a little long, but you don't have to do it often. Will prepare a FreePSXBoot MC tomorrow and update the blog entry with the results of testing legit discs.

  • Like
Reactions: 2 people
@alexander1970
Please have another look at this blog entry (Edit 3).

How could I not see the similarities in the first second? Thanks again for helping. I've used the Datel "Mega Memory Card" a bit – seems to work so far. Still wouldn't trust a compression Memory Card.

  • Like
Reactions: 1 person
