Hardware WiiU Internal SSD Mod

Shadow_The_Hedgehog82

Shadow_The_Hedgehog82

Well-Known Member
OP
Member
Level 6
Joined
Jul 22, 2018
Messages
282
Trophies
0
Age
42
XP
949
Country
Australia

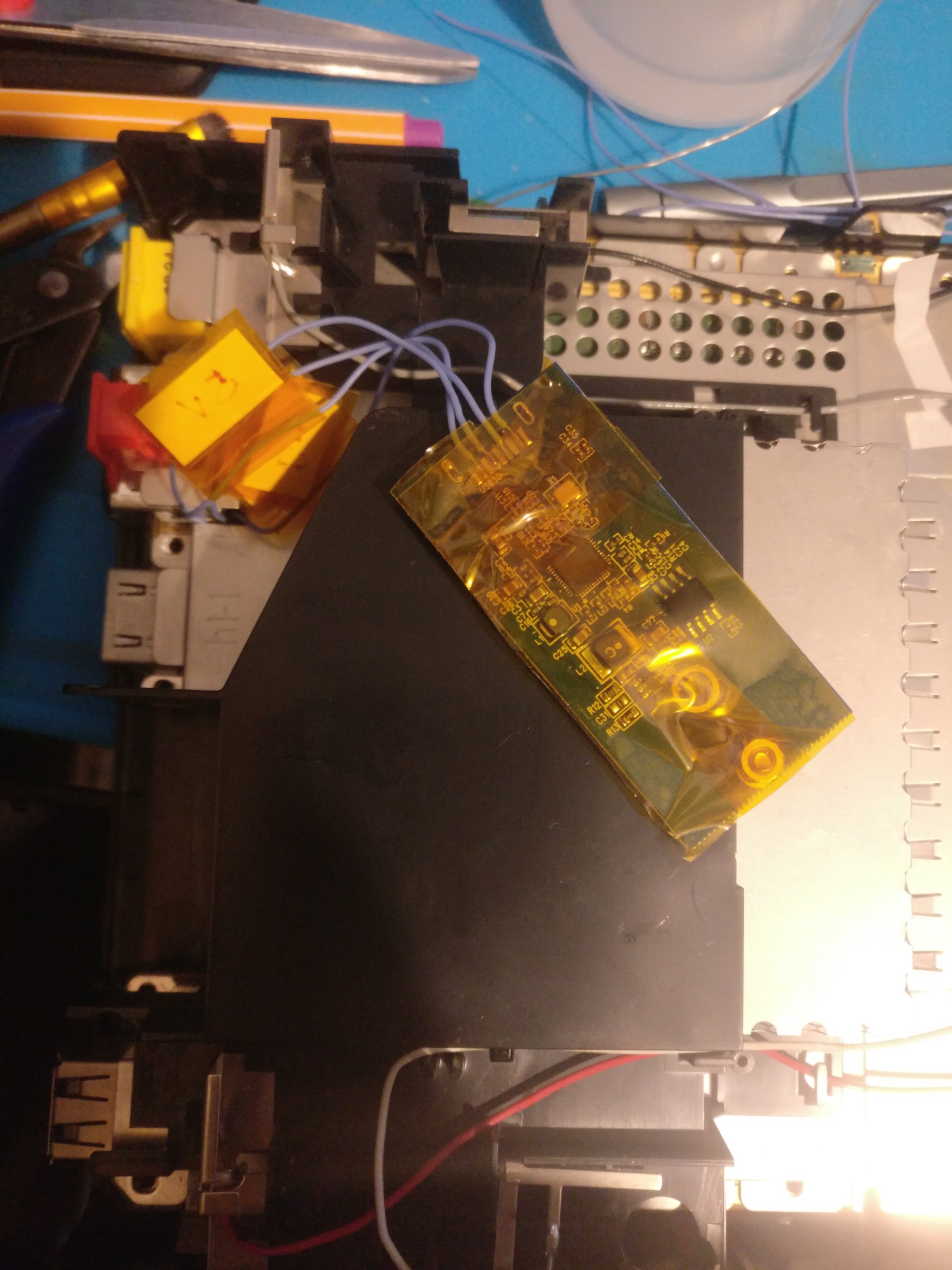

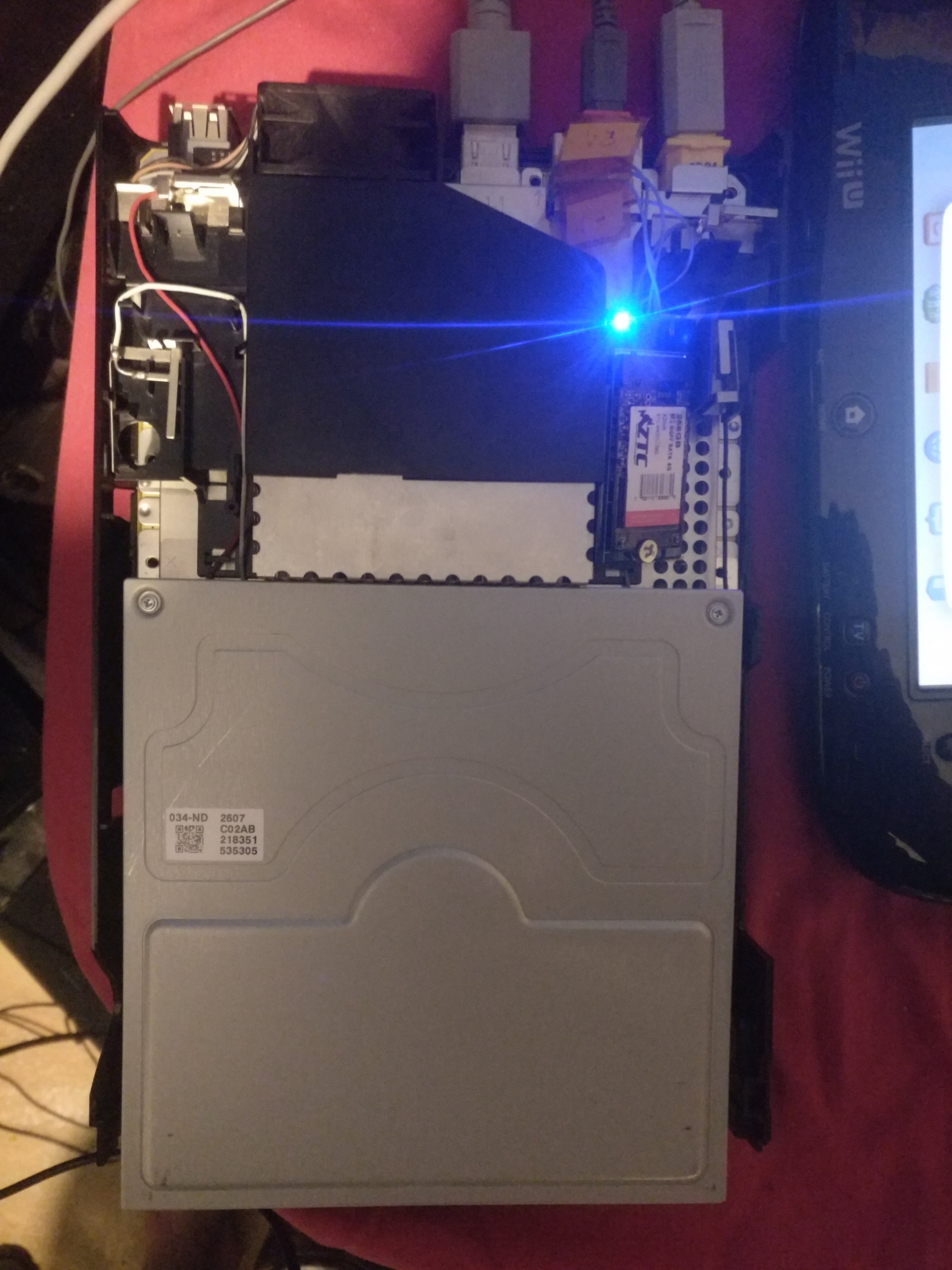

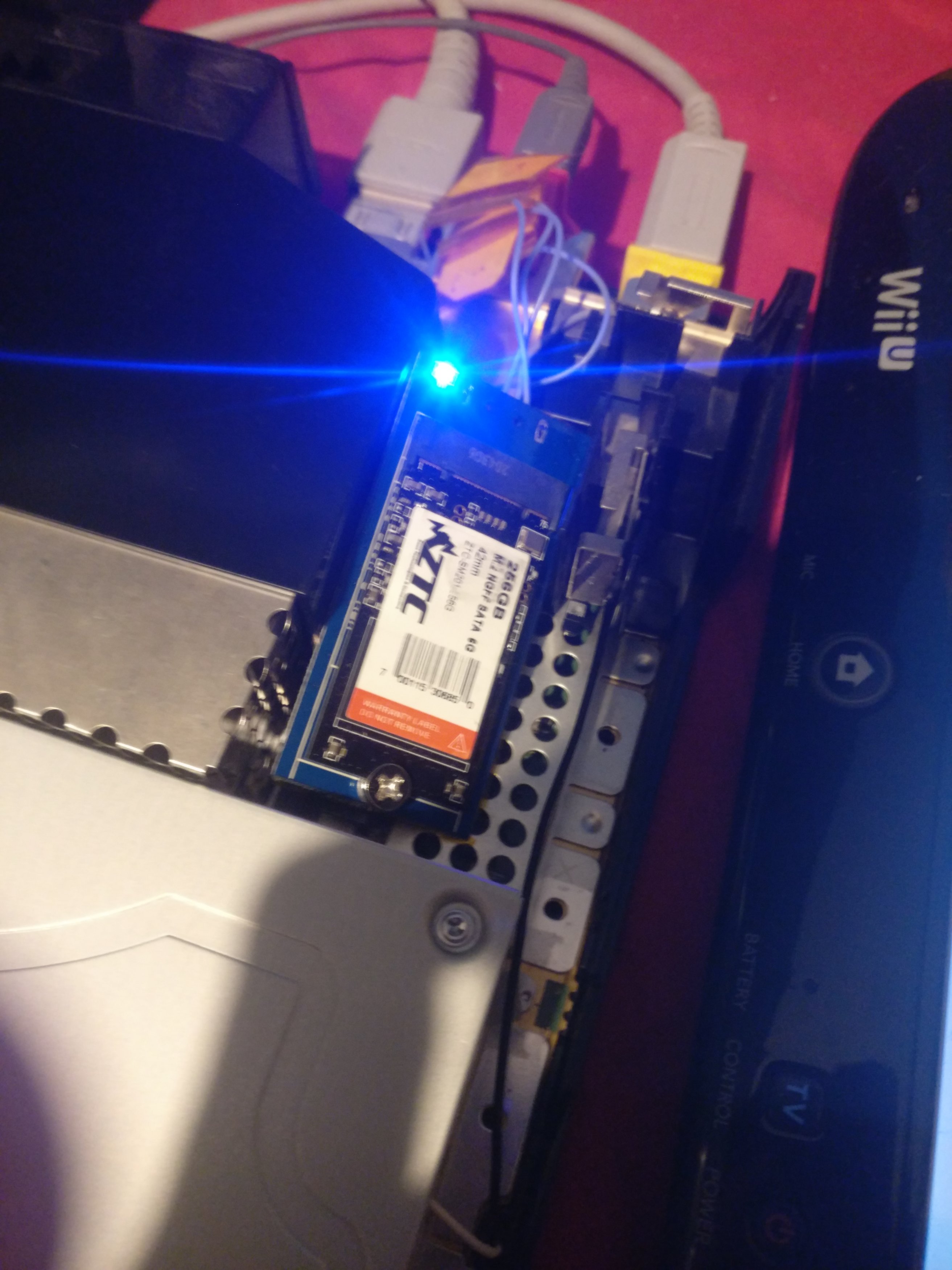

Pretty simple mod I got an m.2 to usb adapter and soldered it to the pins for the back usb port. I saw someone else do something similar on youtube but they had to remove part of the disc drive to get it to fit since it was a sata drive. The m.2 with an adapter is a lot smaller and there is space for it to fit next to the heatsink cover. I used this adapter https://www.amazon.co.uk/gp/product/B08XTG7XW1 with a 42mm m.2 drive



IMG_20210622_204452.jpg IMG_20210622_203526.jpg

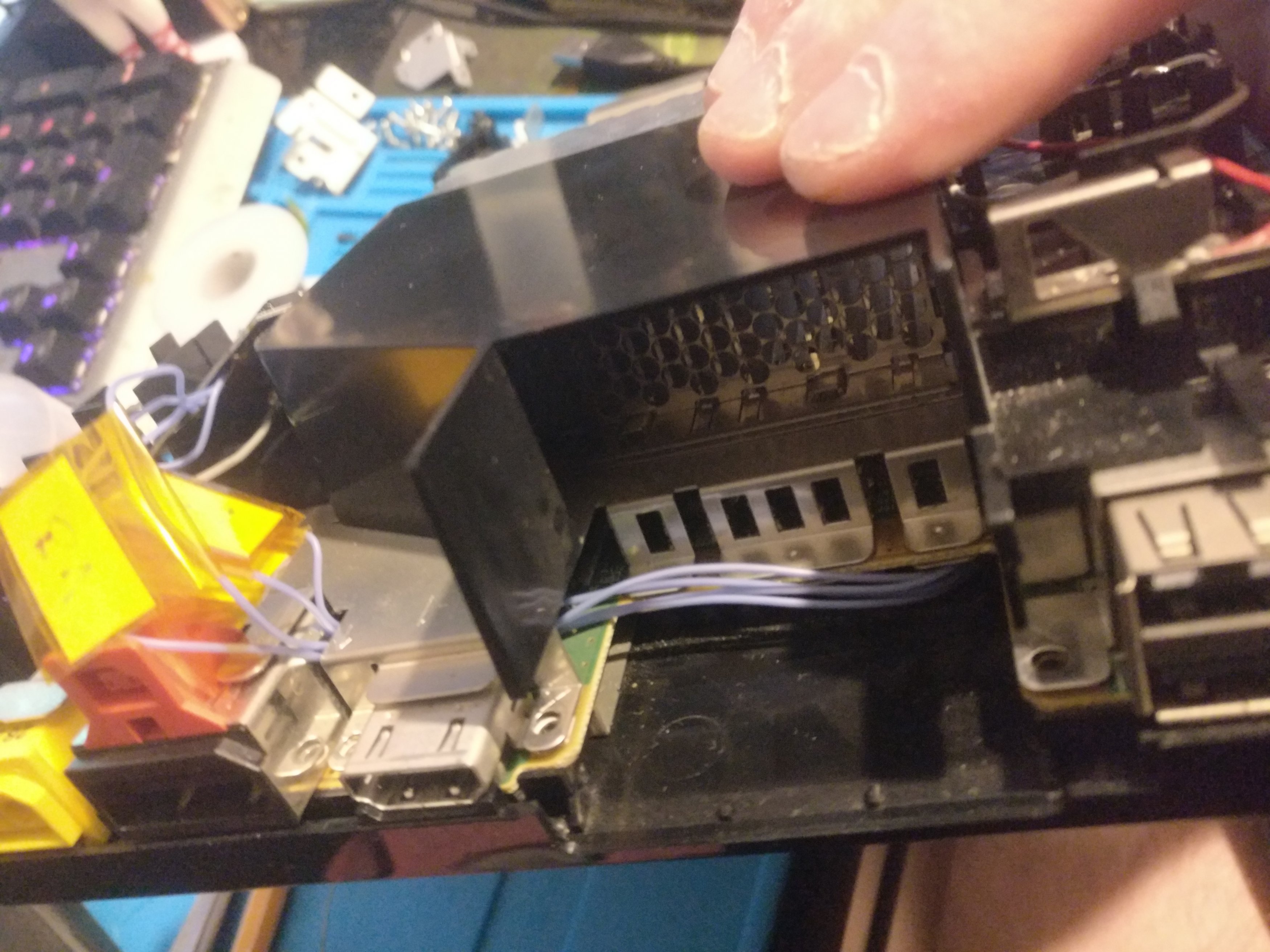

The wires go from the pins of the usb port on the underside of the board under the fan and come out through the metal shield thing

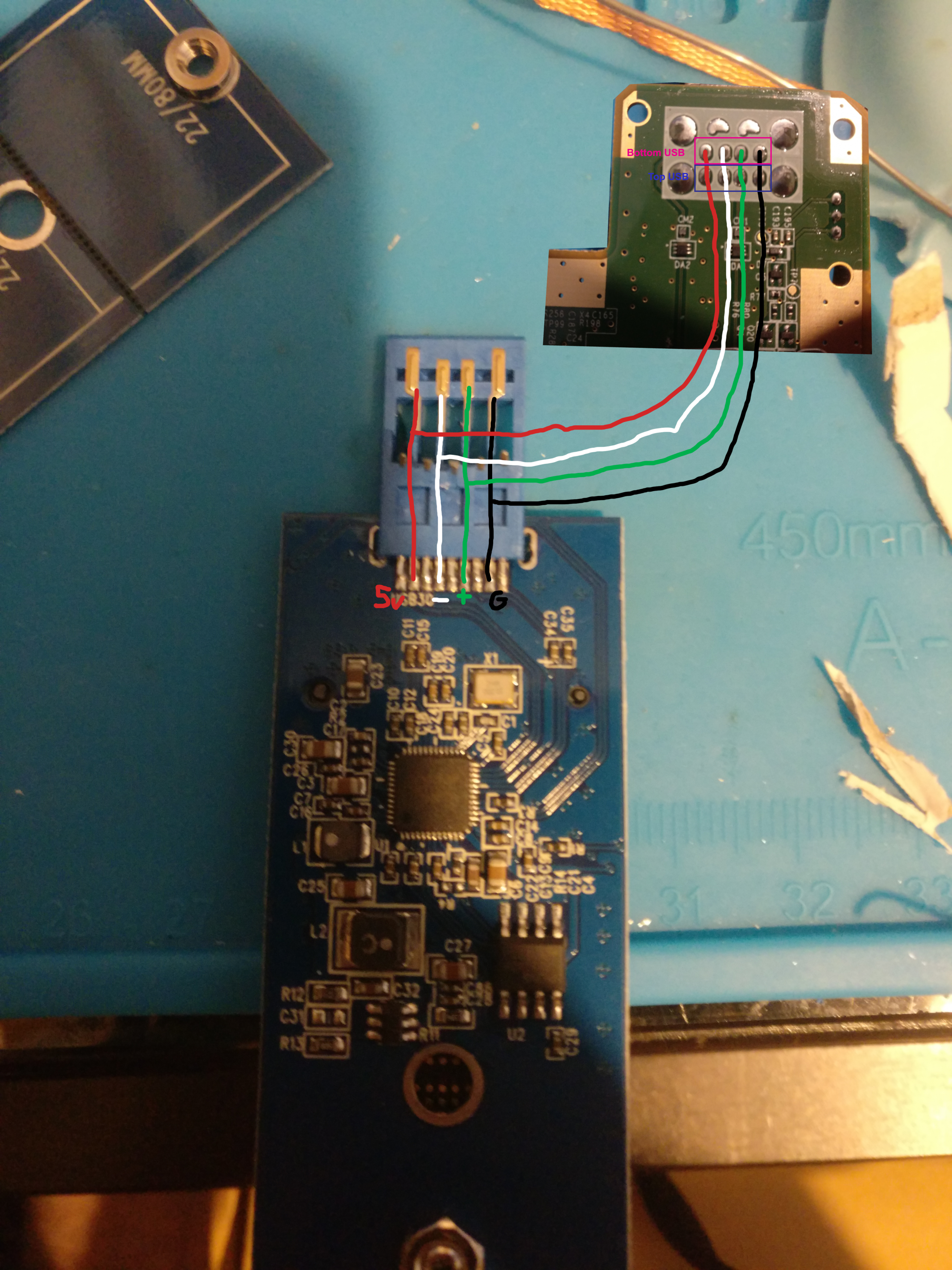

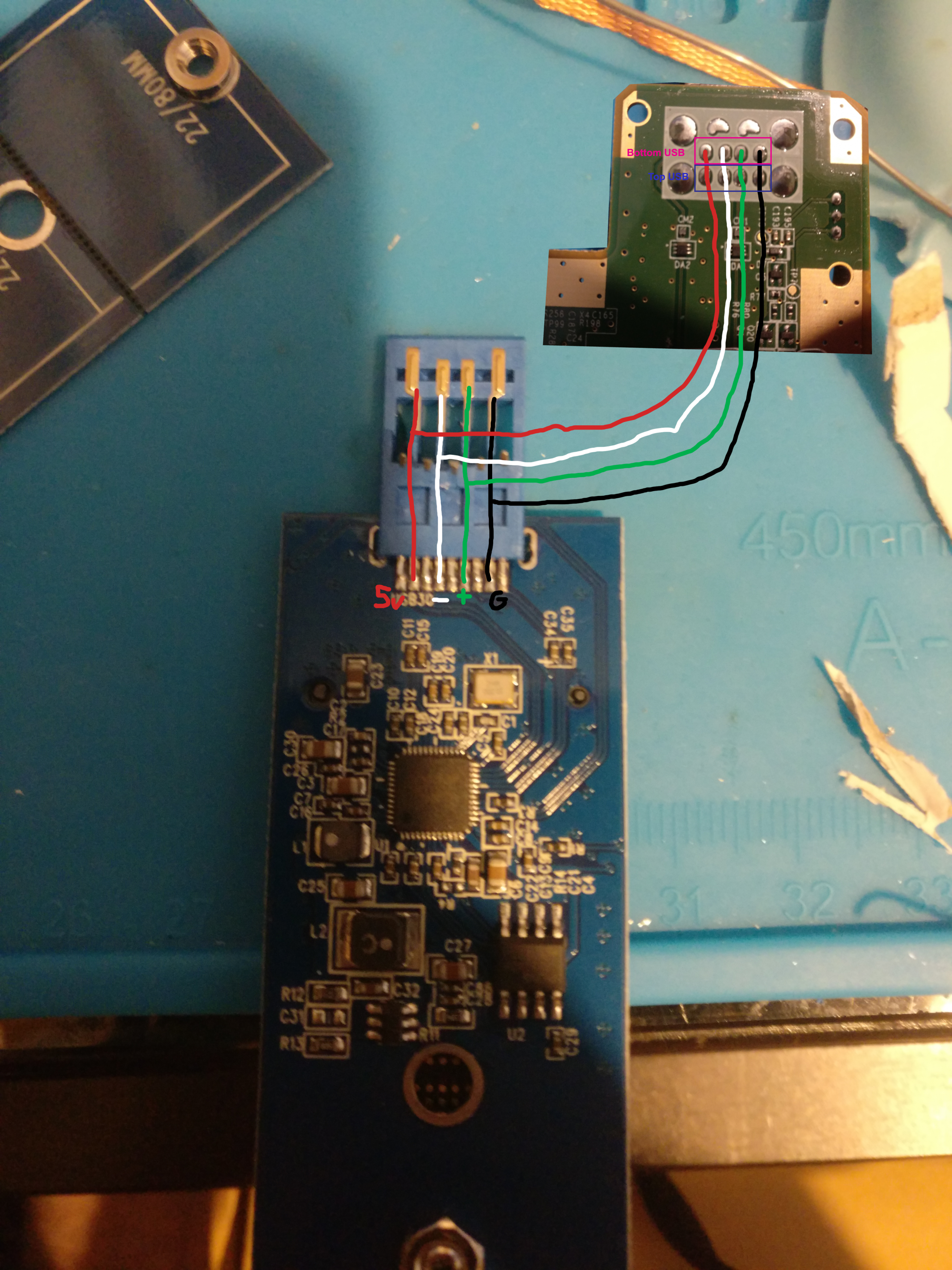

Wiring diagram here

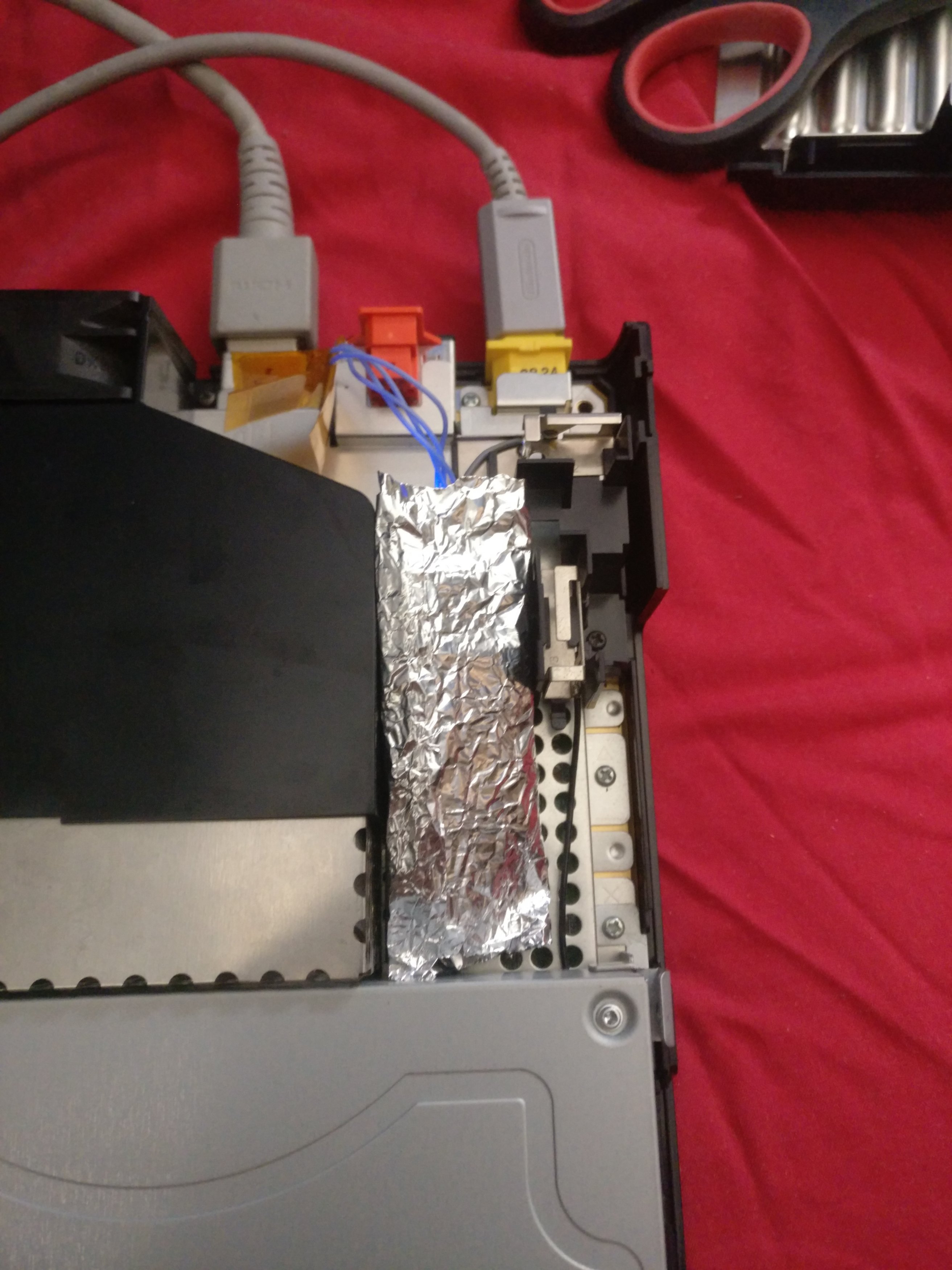

Just reassembled and I think it might be blocking wifi, wont connect to my router. Managed to fix this by opening and wrapping the ssd in tinfoil. This might not be an issue with more expensive m.2 adapters or ssds

Last edited by Shadow_The_Hedgehog82,
  • Like
Reactions: ruffo, netsurf012, NoxiousNinja and 6 others
Shadow_The_Hedgehog82

Shadow_The_Hedgehog82

Well-Known Member
OP
Member
Level 6
Joined
Jul 22, 2018
Messages
282
Trophies
0
Age
42
XP
949
Country
Australia
flowlapache said:
Whaouou! Congratulations for your motivation! nice job! Let us know if tinfoil around ssdmake the wifi again!
And if you earn time when installing games? thanks !
Click to expand...
The tinfoil did fix the wifi I think something on the ssd or converter board was making noise or something ive read usb 3.0 devices can cause issues with 2.4ghz wifi and its right next to the wii u antenna. Not sure how the speed is as i've never used another usb device itll be the same as any other sata ssd with a usb adapter i assume

  • Like
Reactions: Alexander1970 and flowlapache
V10lator

V10lator

Well-Known Member
Member
Level 16
Joined
Apr 21, 2019
Messages
2,664
Trophies
1
Age
36
XP
5,644
Country
Germany
Geat work, just one adition. For a more stable power source you might want to reroute 5v VCC to the big red dot (ignore the two small ones) shown on that picture:
130373-wiiu-power-hack-png

Shadow_The_Hedgehog82

Shadow_The_Hedgehog82

Well-Known Member
OP
Member
Level 6
Joined
Jul 22, 2018
Messages
282
Trophies
0
Age
42
XP
949
Country
Australia
V10lator said:
Geat work, just one adition. For a more stable power source you might want to reroute 5v VCC to the big red dot (ignore the two small ones) shown on that picture:
130373-wiiu-power-hack-png
Click to expand...
I dont think It needs it, its working fine from one power pin, probably doesn't use much more than a normal usb stick

  • Like
Reactions: Alexander1970 and flowlapache
depaul

depaul

Well-Known Member
Member
Level 12
Joined
May 21, 2014
Messages
1,306
Trophies
1
XP
3,018
Country
France
Great mod. I love it.

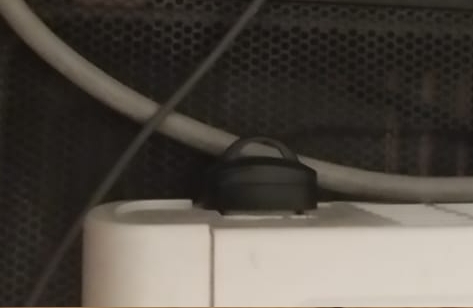

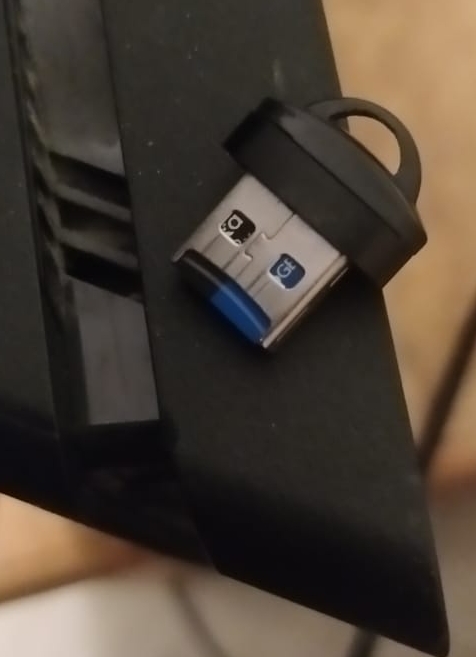

Not criticizing your idea but, I was able to miniaturize my Wii U with a mini SD card reader + 256GB SD card. The Wii U can barely reach full USB 2.0 speed.

Edit:


Last edited by depaul,
  • Like
Reactions: AQS and jeannotte
Shadow_The_Hedgehog82

Shadow_The_Hedgehog82

Well-Known Member
OP
Member
Level 6
Joined
Jul 22, 2018
Messages
282
Trophies
0
Age
42
XP
949
Country
Australia
celica said:
hello after install , wiiu reconize the disk ? what is the cons and pros for this mod ?
Click to expand...
Yes it recognised it its the same as just connecting over usb. Pro is that you dont have to have an ssd/hdd hanging about con i guess is that you gotta open the machine if you want a bigger ssd

depaul said:
Great mod. I love it.
Not criticizing your idea but, I was able to miniaturize my Wii U with a mini SD card reader + 256GB SD card. The Wii U can barely reach full USB 2.0 speed.
Click to expand...
I think sd cards are still slower even if the wiiu cant take full advantage of usb 2 speeds

  • Like
Reactions: depaul and Alexander1970
Alexander1970

Alexander1970

XP not matters.
Member
Level 11
Joined
Nov 8, 2018
Messages
14,973
Trophies
3
Location
Austria
XP
2,512
Country
Austria
Hello.:)

Awesome Mod,Congratulations for your Work and many,many Thanks for sharing it with us !! :yay:

How about the "Heat" from the SSD ? Did it maybe affect the WiFi ? :(

Thank you and awesome Work.:bow:

Shadow_The_Hedgehog82

Shadow_The_Hedgehog82

Well-Known Member
OP
Member
Level 6
Joined
Jul 22, 2018
Messages
282
Trophies
0
Age
42
XP
949
Country
Australia
alexander1970 said:
Hello.:)

Awesome Mod,Congratulations for your Work and many,many Thanks for sharing it with us !! :yay:

How about the "Heat" from the SSD ? Did it maybe affect the WiFi ? :(

Thank you and awesome Work.:bow:
Click to expand...
I'm not sure about heat I redid the tinfoil nicely after taking that picture and stuck sheets on the top and bottom so air can still get in there a bit. Heat is probably fine tho since its not running at full usb3 speeds I'd imagine it will produce less heat because of that. Wifi does not work at all without the tinfoil

  • Like
Reactions: Alexander1970
jul16ares

jul16ares

Well-Known Member
Member
Level 6
Joined
Dec 25, 2018
Messages
175
Trophies
0
XP
854
Country
France
Shadow_The_Hedgehog82 said:
Pretty simple mod I got an m.2 to usb adapter and soldered it to the pins for the back usb port. I saw someone else do something similar on youtube but they had to remove part of the disc drive to get it to fit since it was a sata drive. The m.2 with an adapter is a lot smaller and there is space for it to fit next to the heatsink cover. I used this adapter with a 42mm m.2 drive


View attachment 267756

View attachment 267758 View attachment 267759


The wires go from the pins of the usb port on the underside of the board under the fan and come out through the metal shield thing

View attachment 267755

Wiring diagram here
View attachment 267757

Just reassembled and I think it might be blocking wifi, wont connect to my router. Managed to fix this by opening and wrapping the ssd in tinfoil. This might not be an issue with more expensive m.2 adapters or ssds
View attachment 267790
Click to expand...
Why do you put some tiny electronics insulation tape pieces on wires above sensor bar red connector ?
