I have a Switch Lite that cannot read sd cards. I have tried different cards and still can’t read it. I get the following error message:

Error code 2016-0641 unable to access media

If I replace the micro sd reader, will that fix the issue or is there some kind of ic chip that I have to look at? The micro sd reader is soldered on the main circuit board, unlike the v1/v2 switch that can be easily replace.

Thank you.

impeeza

impeeza

¡Kabito!
Member
Level 27
Joined
Apr 5, 2011
Messages
6,364
Trophies
3
Age
46
Location
At my chair.
XP
18,740
Country
Colombia
Gamefreak001 said:
I have a Switch Lite that cannot read sd cards. I have tried different cards and still can’t read it. I get the following error message:

Error code 2016-0641 unable to access media

If I replace the micro sd reader, will that fix the issue or is there some kind of ic chip that I have to look at? The micro sd reader is soldered on the main circuit board, unlike the v1/v2 switch that can be easily replace.

Thank you.
Click to expand...
yeah the more possible culpable is the reader, try change it.

  • Like
Reactions: Gamefreak001
Gamefreak001

Gamefreak001

Member
OP
Newcomer
Level 2
Joined
Jul 1, 2023
Messages
19
Trophies
0
Age
44
XP
134
Country
United States
Replaced the sd card reader and that didn’t fix the issue. Something else is causing this issue, just don’t know which one to try.

Hayato213

Hayato213

Newcomer
Member
Level 28
Joined
Dec 26, 2015
Messages
19,983
Trophies
1
XP
21,035
Country
United States
Gamefreak001 said:
Replaced the sd card reader and that didn’t fix the issue. Something else is causing this issue, just don’t know which one to try.
Click to expand...

On the switch lite , the sd card reader is soldered on to the board, if it is really the sd card reade problem you either have to desolder the sd card reader, replace it or get a new motherboard.

Gamefreak001

Gamefreak001

Member
OP
Newcomer
Level 2
Joined
Jul 1, 2023
Messages
19
Trophies
0
Age
44
XP
134
Country
United States
Hayato213 said:
On the switch lite , the sd card reader is soldered on to the board, if it is really the sd card reade problem you either have to desolder the sd card reader, replace it or get a new motherboard.
Click to expand...
Already replaced the sd card reader an hour ago and that didn’t help fix the error.

What is this blue smd? I am comparing diode values between another working board and I am not getting any value at this component. I am getting 0v instead of 0.57v.


Attachments

  • 0A46E821-839D-471F-A1D6-15F1E2FAB8F2.jpeg
    1.3 MB · Views: 48
Hayato213

Hayato213

Newcomer
Member
Level 28
Joined
Dec 26, 2015
Messages
19,983
Trophies
1
XP
21,035
Country
United States
Gamefreak001 said:
Already replaced the sd card reader an hour ago and that didn’t help fix the error.

What is this blue smd? I am comparing diode values between another working board and I am not getting any value at this component. I am getting 0v instead of 0.57v.
Click to expand...

Sorry , don't know the specific component, don't own a switch lite anymore.

Disurb

Disurb

New Member
Newbie
Level 1
Joined
Jun 20, 2023
Messages
2
Trophies
0
Age
38
XP
40
Country
Germany
Gamefreak001 said:
Already replaced the sd card reader an hour ago and that didn’t help fix the error.

What is this blue smd? I am comparing diode values between another working board and I am not getting any value at this component. I am getting 0v instead of 0.57v.
Click to expand...
Did you manage to solve the issue? I have the same problem and I‘m not sure if I should solder a new SD reader on the board or just buy a new board.
Btw, the blue component with the white dot (above the SD reader) is shorted for me as well.

Gamefreak001

Gamefreak001

Member
OP
Newcomer
Level 2
Joined
Jul 1, 2023
Messages
19
Trophies
0
Age
44
XP
134
Country
United States
Disurb said:
Did you manage to solve the issue? I have the same problem and I‘m not sure if I should solder a new SD reader on the board or just buy a new board.
Btw, the blue component with the white dot (above the SD reader) is shorted for me as well.
Click to expand...

This issue is still outstanding. I compared this board with a working one and something else is causing this, not the physical micro sd slot. I just don’t have enough electric engineering background to troubleshoot this. This will sit in my pile until I have more experience in troubleshooting.

Disurb

Disurb

New Member
Newbie
Level 1
Joined
Jun 20, 2023
Messages
2
Trophies
0
Age
38
XP
40
Country
Germany
Gamefreak001 said:
This issue is still outstanding. I compared this board with a working one and something else is causing this, not the physical micro sd slot. I just don’t have enough electric engineering background to troubleshoot this. This will sit in my pile until I have more experience in troubleshooting.
Click to expand...

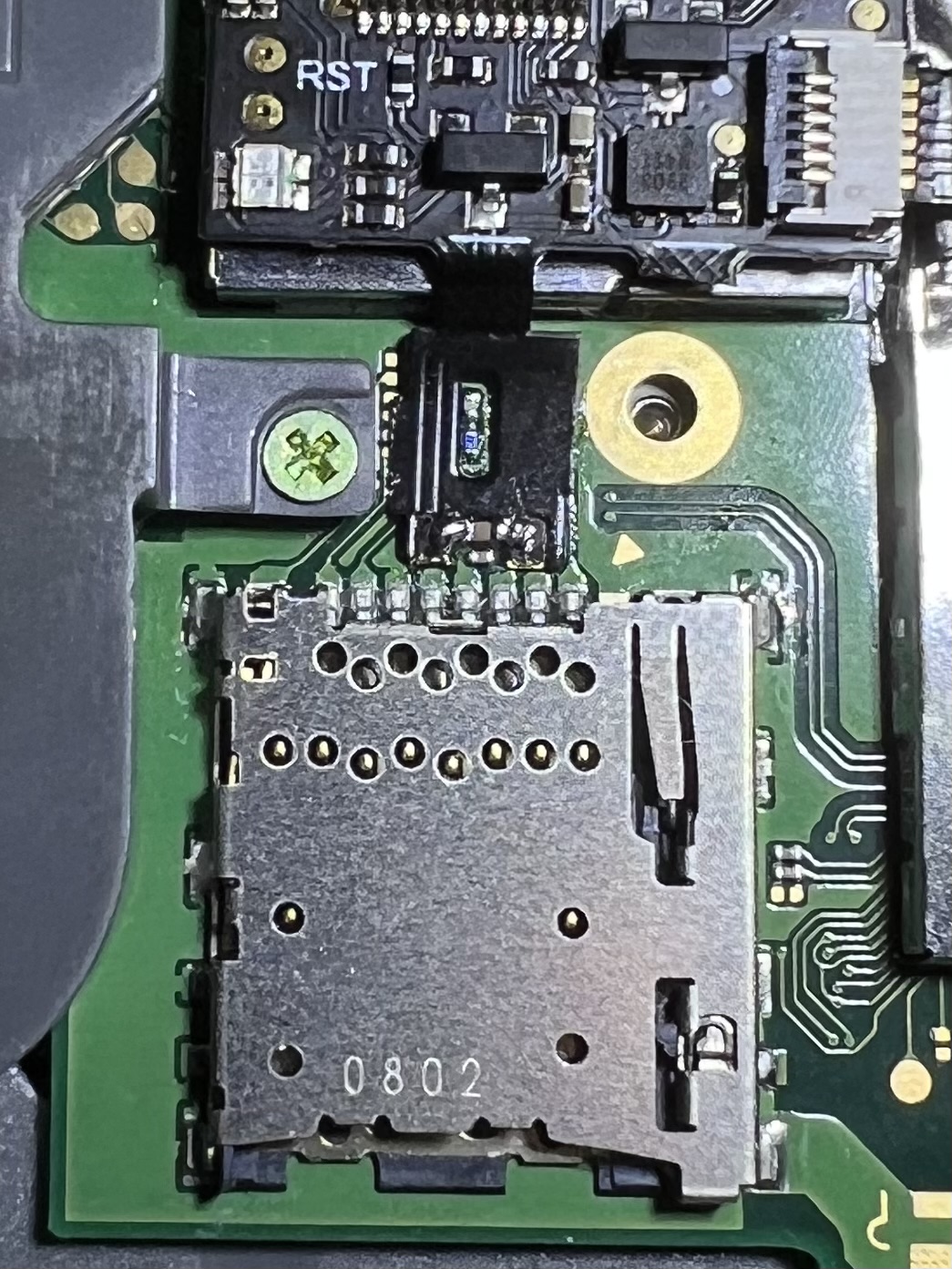

I also checked another Switch Lite board for comparison and on there the blue component is also shorted. How do you measure to get .57v ?

I also check the connection of all the 8 pins from the SD slot and they seem to be perfectly working. My switch has some other type of the SD slot where the pins are accessible from outside, so I’m able to check them.

My guess is that the 9th connector, which is supposed to be grounded once the SD card is inserted somehow isn’t working as intended and/or that something inside my SD slot is messing with this pin. And since I can’t figure out anything else, I think I‘m going to replace the slot and hope for the best.


Attachments

  • IMG_5793.jpeg
    505.1 KB · Views: 48
Kirstenp

Kirstenp

New Member
Newbie
Level 1
Joined
Nov 13, 2023
Messages
1
Trophies
0
Age
31
XP
2
Country
United States
Gamefreak001 said:
I have a Switch Lite that cannot read sd cards. I have tried different cards and still can’t read it. I get the following error message:

Error code 2016-0641 unable to access media

If I replace the micro sd reader, will that fix the issue or is there some kind of ic chip that I have to look at? The micro sd reader is soldered on the main circuit board, unlike the v1/v2 switch that can be easily replace.

Thank you.
Click to expand...
Could you let me know the website you found a micro SD card slot replacement because I'm having same issue and having the hardest time finding the replacement part.
