broken PS5 with missing components

[Spiderschwein]

Hello, I bought a broken PS5 with many missing components, broken disc drive and update error (su-101312-8)

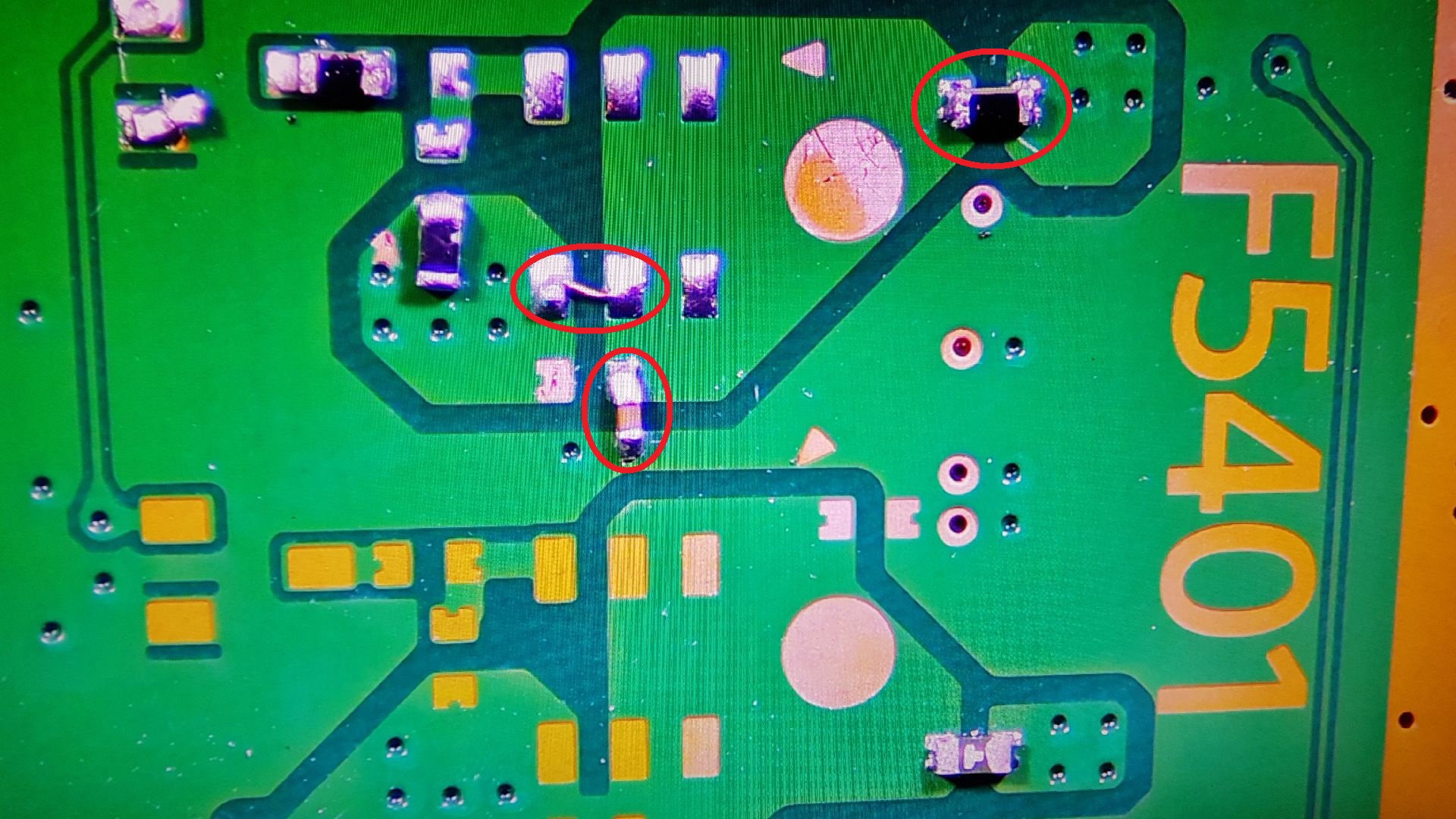

I fix the disc drive with a piece of wire, 0201 100nF cap, nintendo switch fuse, disc drive and update works
because I can't find the right components


PS5 works good but if the ps5 is off for a longer time I always get a blue light of death and it has to start in safe mode
Can anyone help me with the right components

Thanks



[ILuvGames]

Hello, I bought a broken PS5 with many missing components, broken disc drive and update error (su-101312-8)
View attachment 418760View attachment 418761

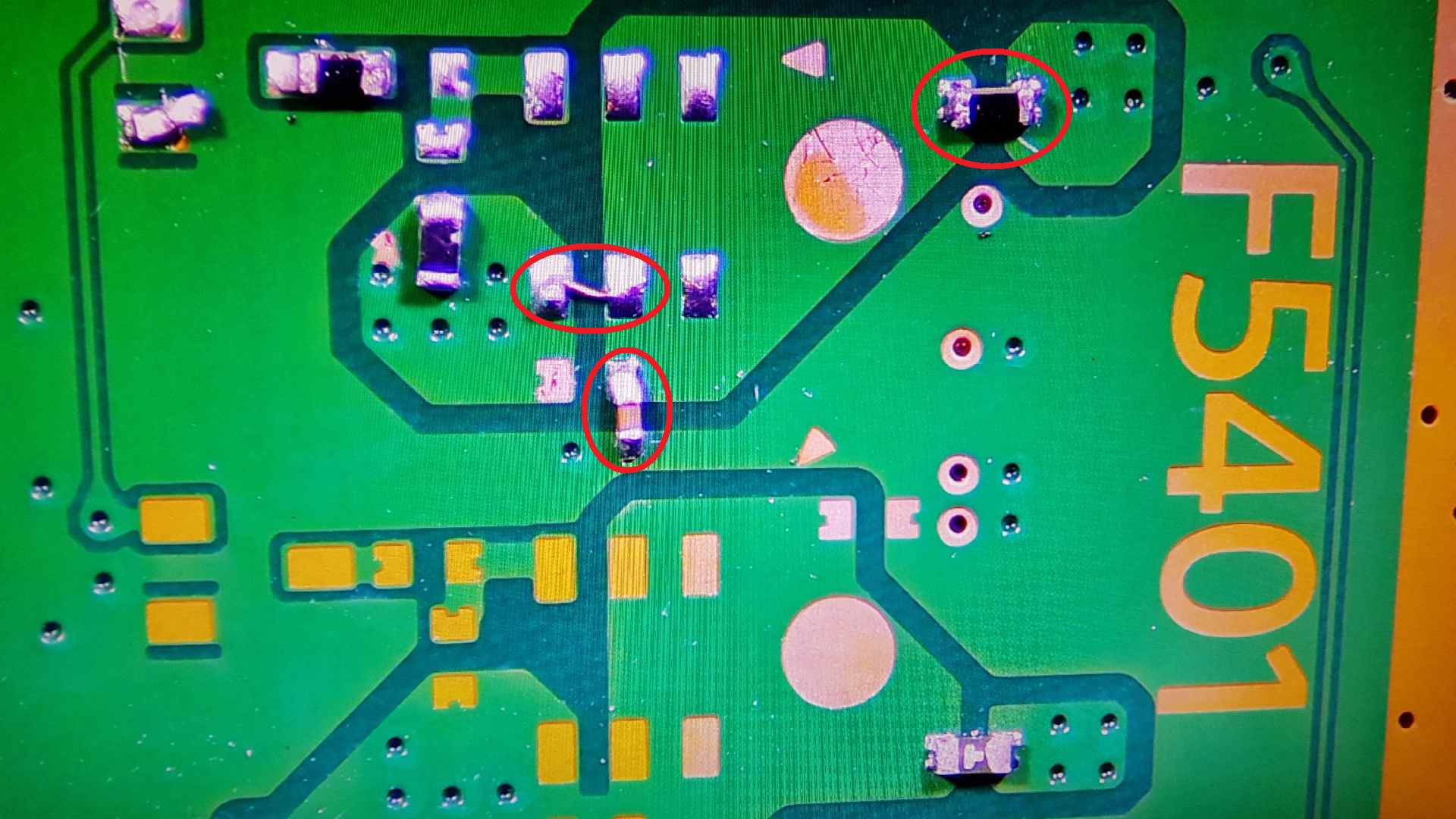

I fix the disc drive with a piece of wire, 0201 100nF cap, nintendo switch fuse, disc drive and update works
because I can't find the right components
View attachment 418762

PS5 works good but if the ps5 is off for a longer time I always get a blue light of death and it has to start in safe mode
Can anyone help me with the right components

Thanks

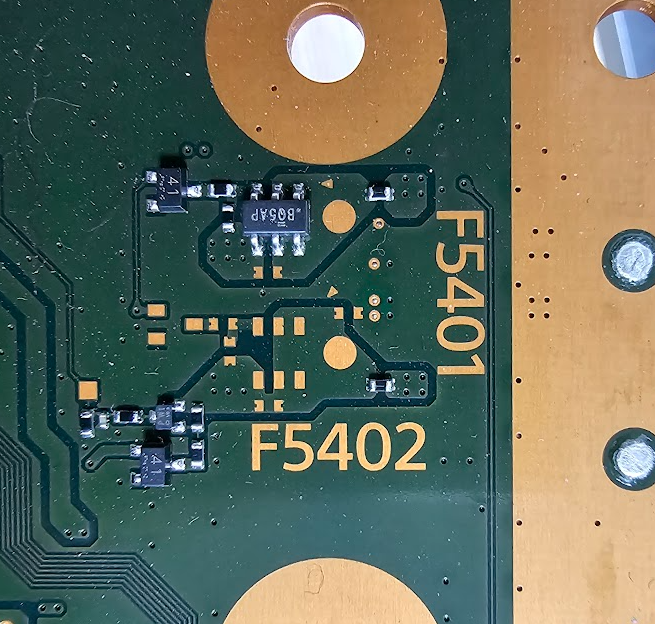

This should give you one of them I hope :-
https://gbatemp.net/threads/need-ca...r-digital-edition-edm-020-f5401-f5402.638865/



[Spiderschwein]

Thanks, it works but these are not the right ones for an EDM-010 board



[jkyoho]

you have edm010 or what?



[Spiderschwein]

yes

Post automatically merged: Feb 7, 2024

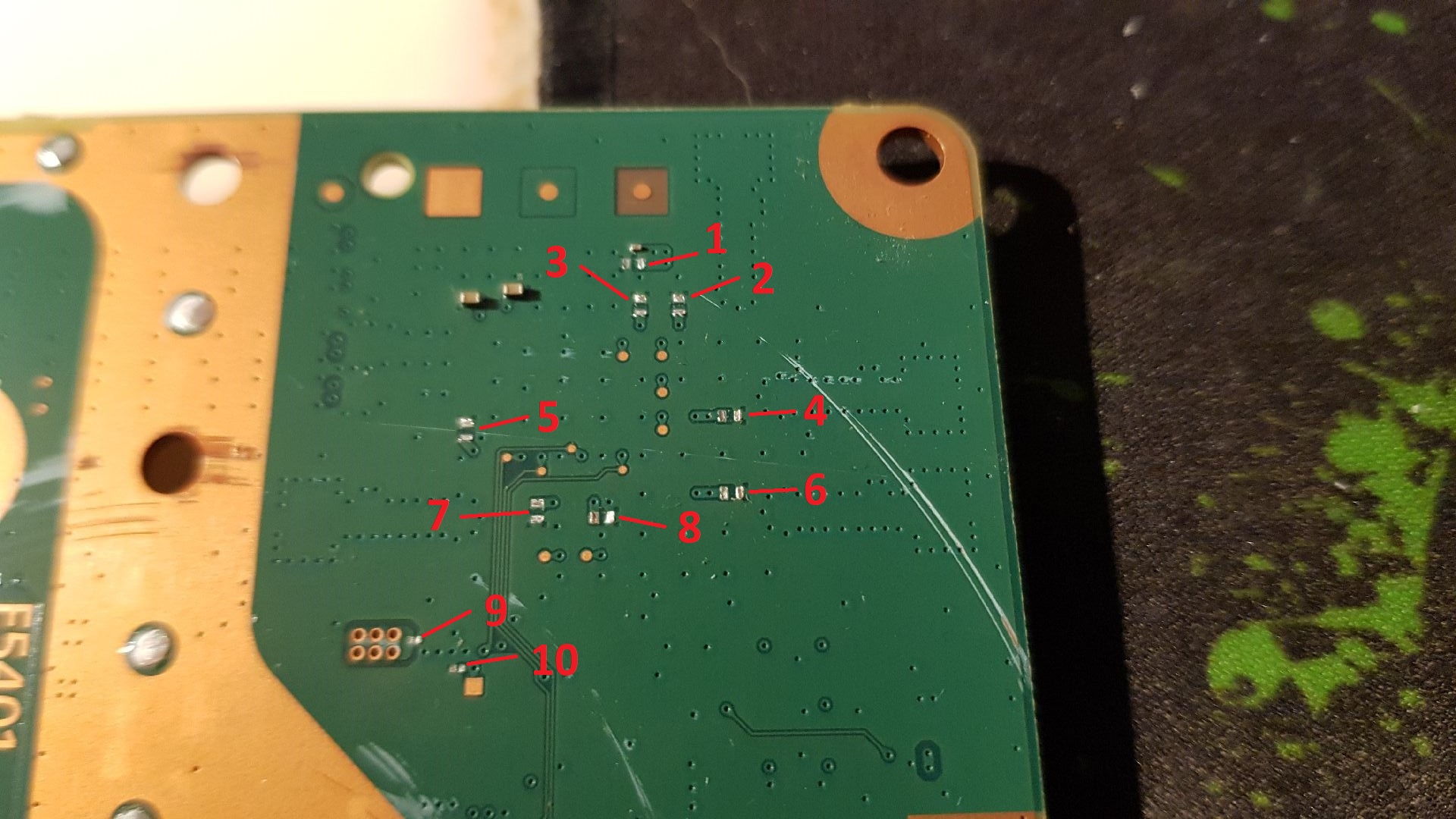

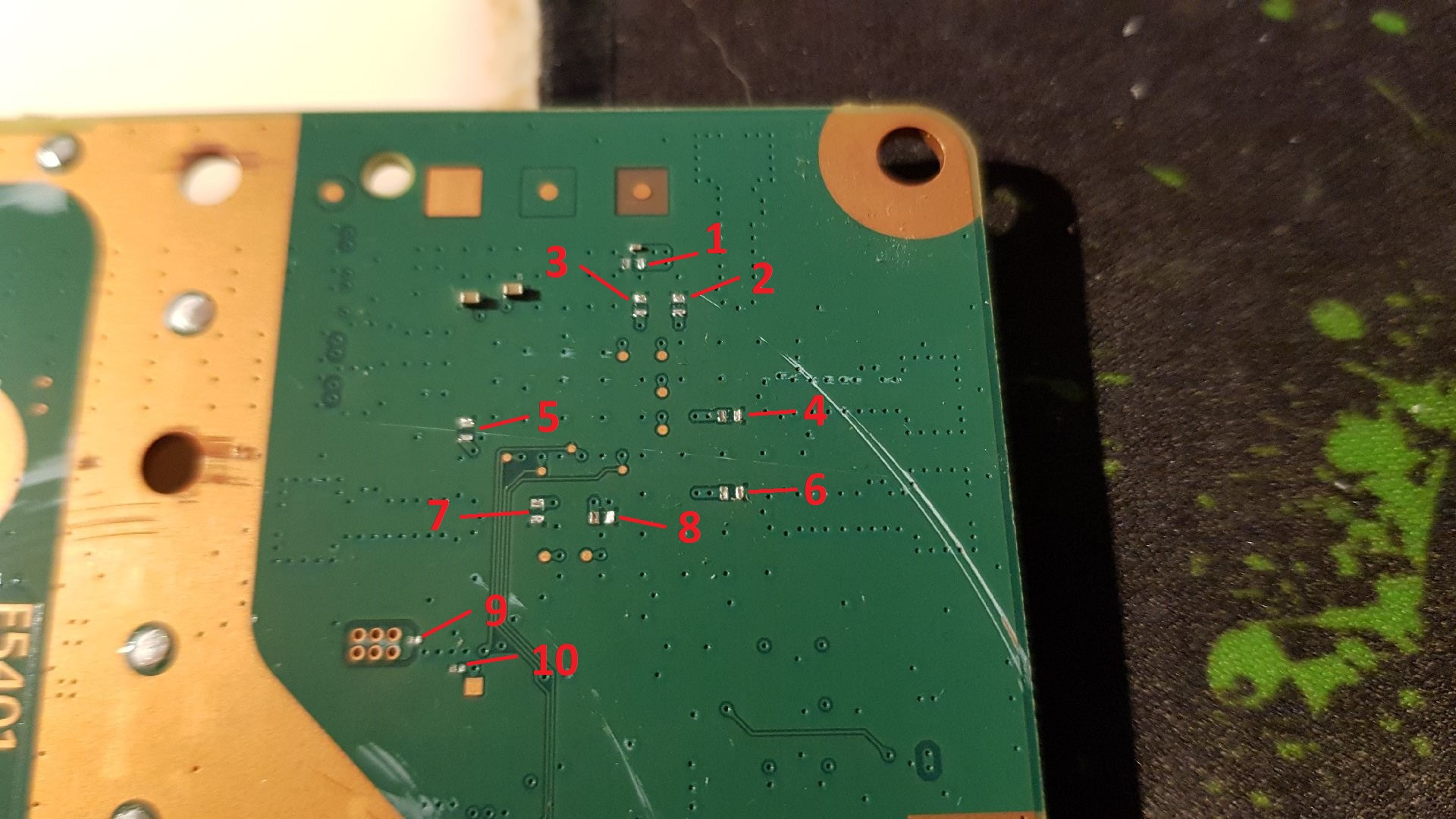

I think the 10 missing caps are responsible for the blue light of death on the first boot



[jkyoho]

Remove your jumper cable on that SOT236 PAD and see if you still have BLOD
those 10 caps is just filter/decoupling caps for the wifi chip. Wont lead to BLOD without them

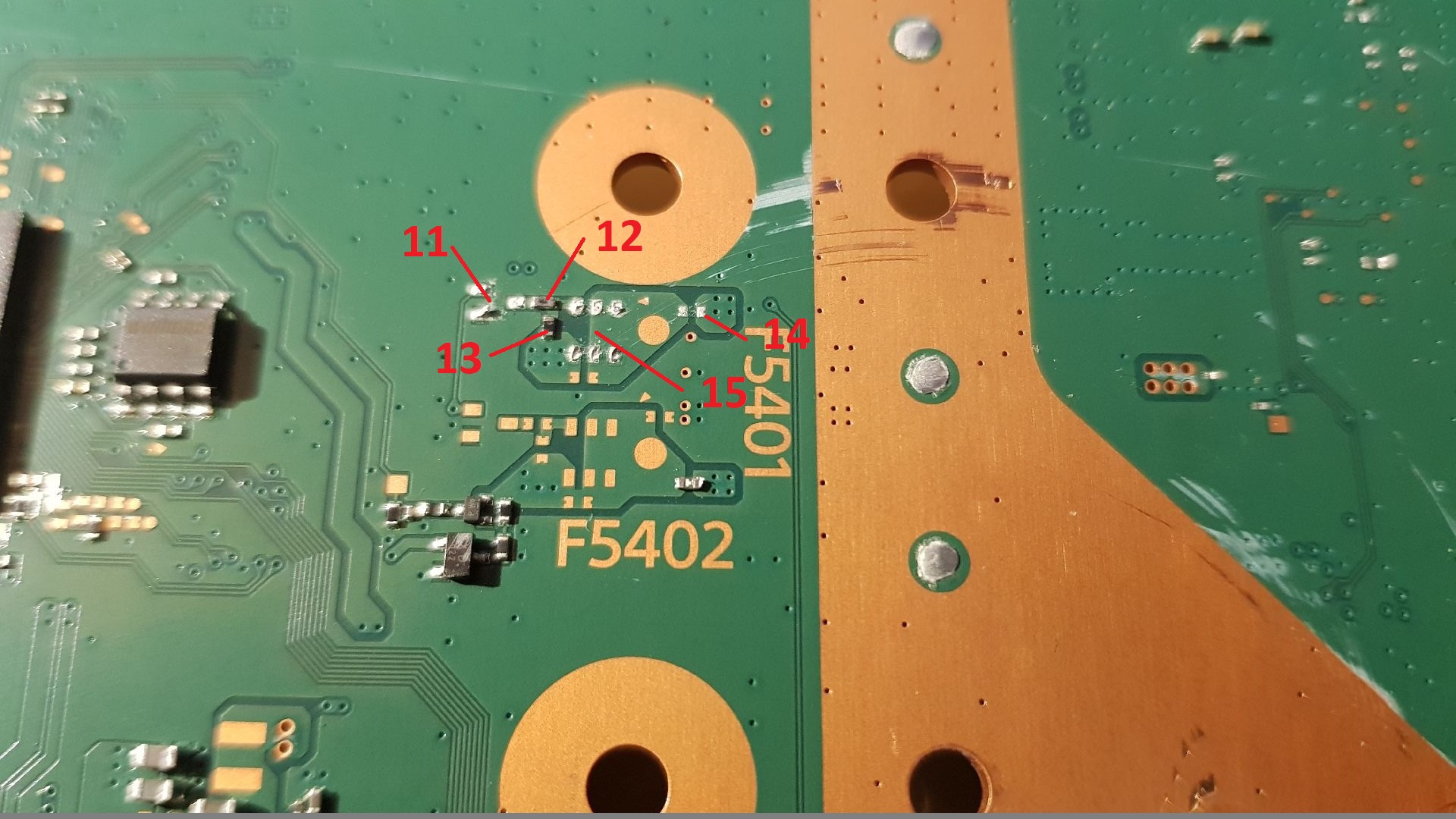

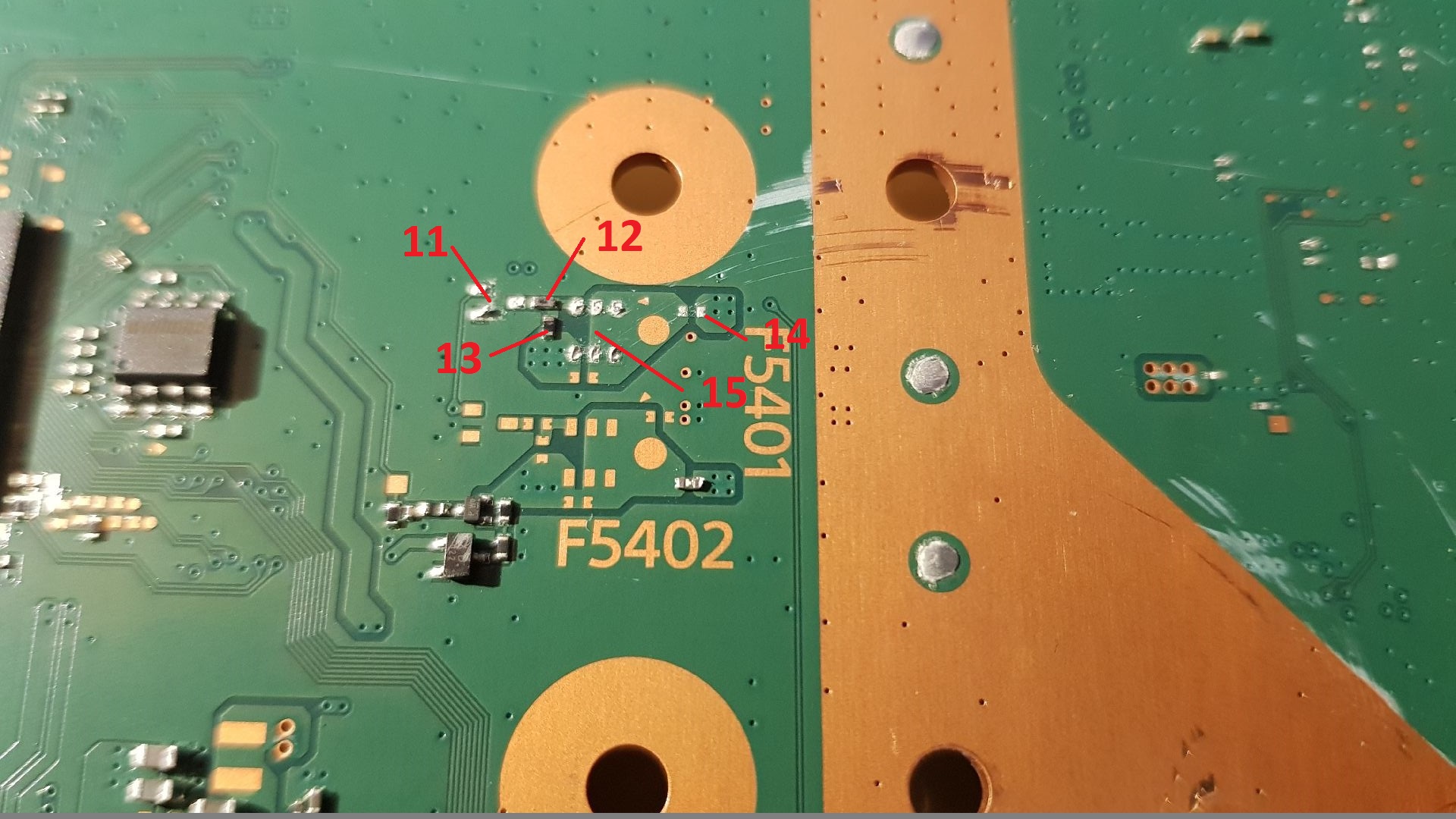

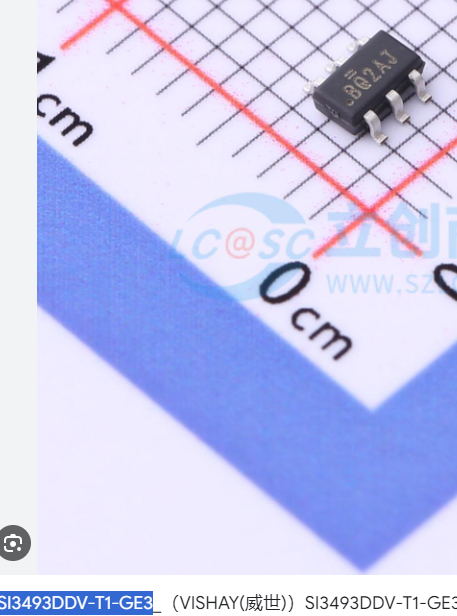

I guess that No.15 missing chip maybe SI3493DDV-T1-GE3, 90% sure



[Spiderschwein]

BLOD was already without a jumper
without jumper disc drive and update broken



[ThaddeusShaw]

Why did you buy it in the first place?



[Spiderschwein]

for fun
I bought it with a broken disk dive
But you never know what you're get on eBay



[ThaddeusShaw]

for fun
I bought it with a broken disk dive
But you never know what you're get on eBay

Wait, did the seller just send you broken stuff? Can't you return it?



[k0walski]

I guess this is the case when one buys the stuff on eBay almost for nothing (my guess), finds that the stuff is not entirely functional, has the skills to repair it.. so why not? Some sort of a challenge. And fun.



[Spiderschwein]

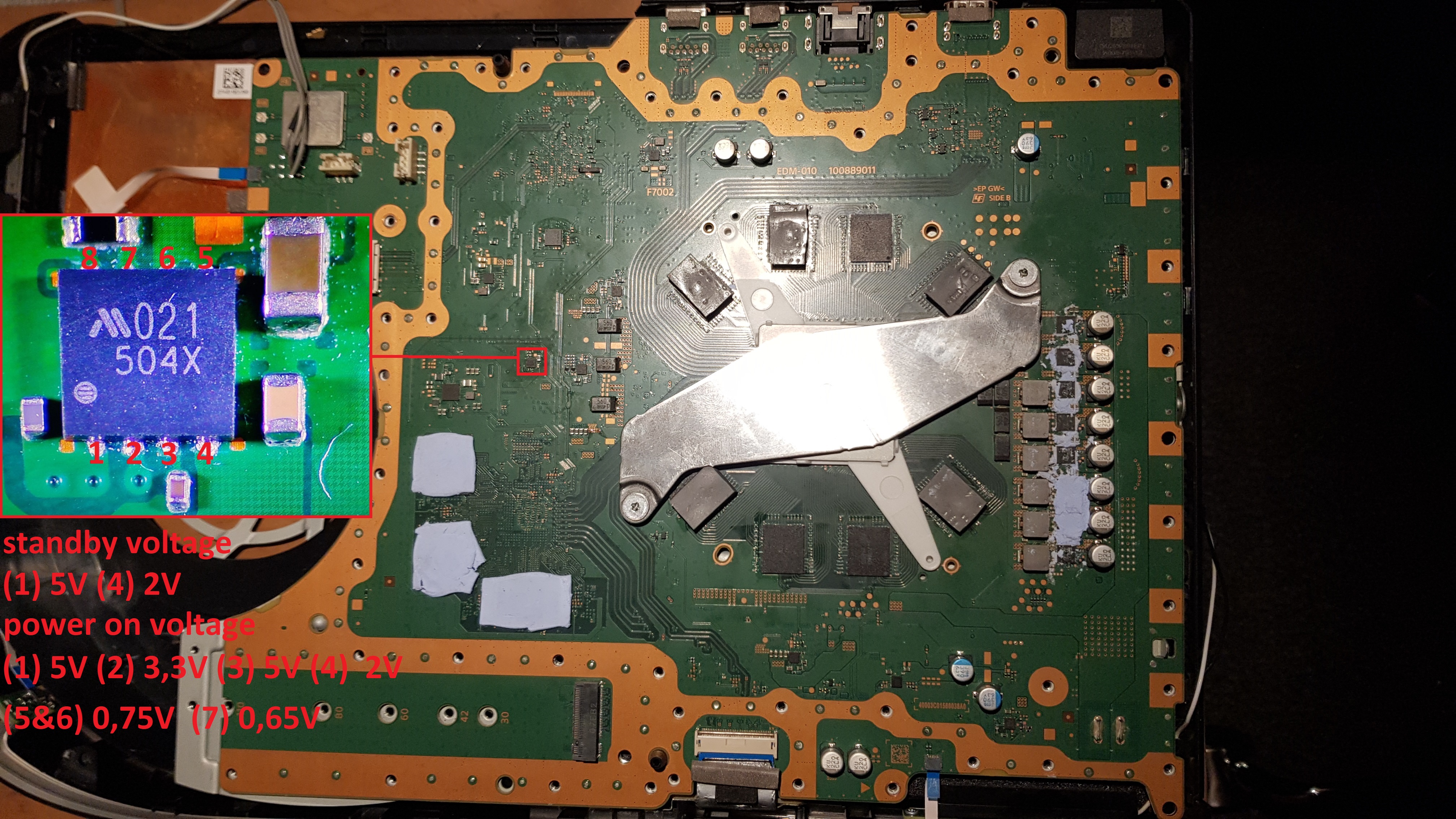

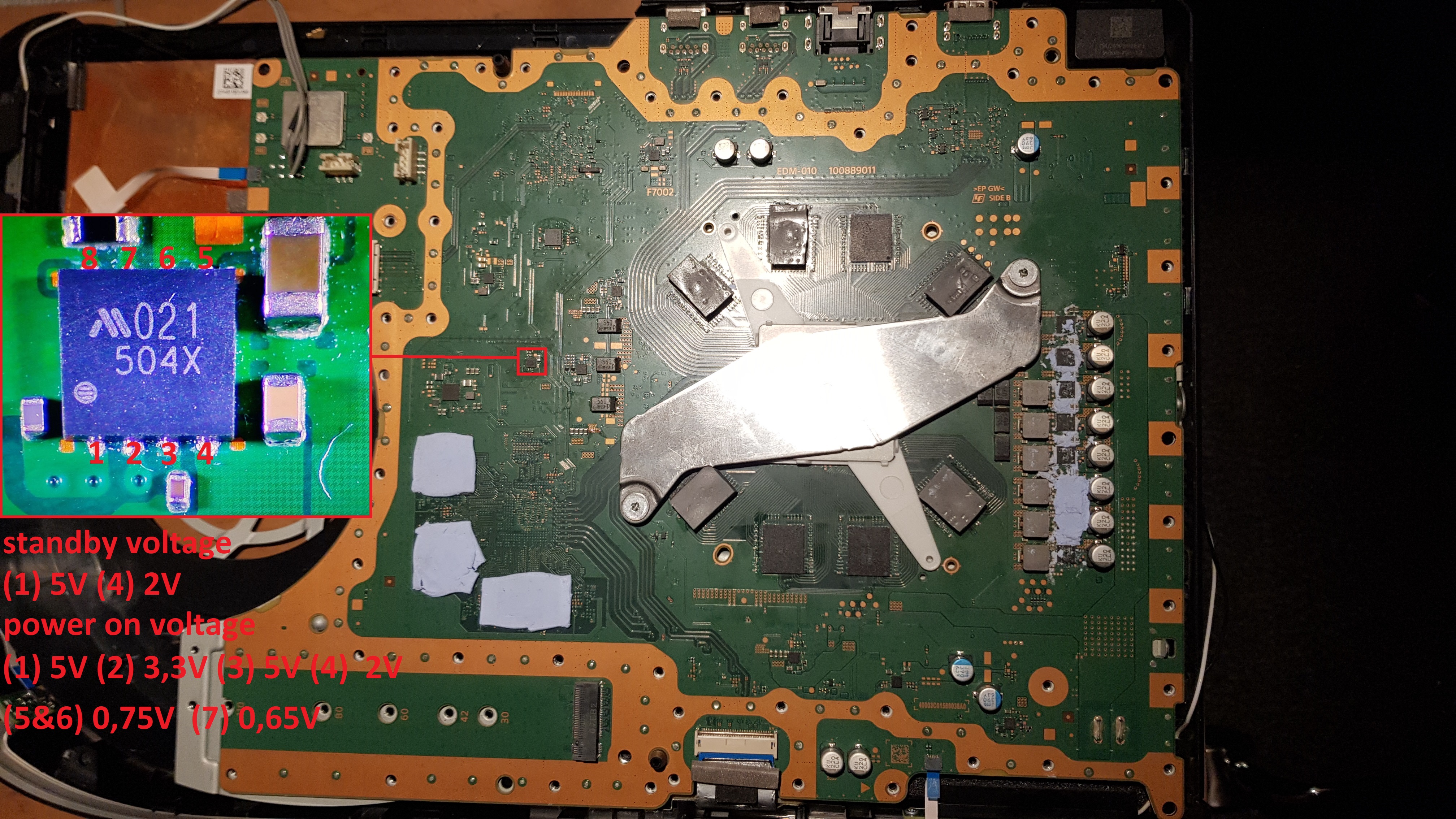

I think I found the problem
The M021 504X chip gets very hot and can burn fingers
I'm not sure, but it looks like the chip is cracked
Can anyone tell me where I can buy this chip

Error Description
long blue light of death
ps5 error code ce-108262-9
PS5 UART error code 80800000 Kernel Panic Shutdown



[jkyoho]

I think I found the problem
The M021 504X chip gets very hot and can burn fingers
I'm not sure, but it looks like the chip is cracked
Can anyone tell me where I can buy this chip

Error Description
long blue light of death
ps5 error code ce-108262-9
PS5 UART error code 80800000 Kernel Panic Shutdown


View attachment 426752

get RT9048A instead



[Spiderschwein]

Thank you
but the chip is hard to find
only found at mauser, 20 bugs for shipping
Do you know any other dealers?
https://www.mouser.de/ProductDetail/Richtek/RT9048AGQW?qs=amGC7iS6iy85nk4CvBjBJw==



[jkyoho]

I know, this stuff sometime rare to find/purchase, at least mouser/digikey has it in stock



[thesjaakspoiler]

Aliexpress has them in a different package (sop-8) so that will need so more handycraft.
https://www.aliexpress.com/item/1005003157627799.html



[joodysil]

Bad feeling bro, good luck



[Spiderschwein]

I replaced the chip, same problem and found new problem, SSD controller damaged
PS5 sold to @stetofix
